  11. Locking Plug, L24-20P, 20 A, 347V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

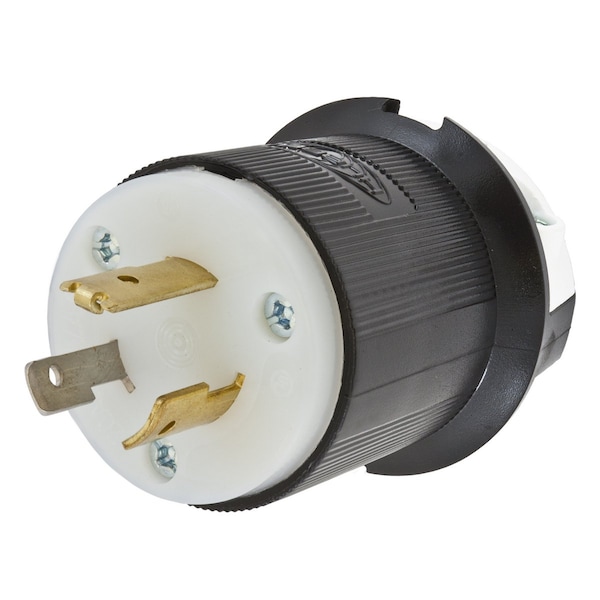

Hubbell Wiring Device-Kellems Locking Plug, L24-20P, 20 A, 347V AC, Single Phase, 2 Pole, Screw Terminals, Black, White HBL3721 - main

Locking Plug, L24-20P, 20 A, 347V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL3721

  • Zoro # G300702380

product price: $28.35
/ea

Key Features

NEMA Plug Configuration
L24-20P
Current Rating
20 A
Voltage Rating
347V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL3721
Zoro #
G300702380
UPC #
783585046594
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.93 in
For Minimum Cable Diameter
0.36 in
Cord Size
.360"-.930"
Length
2.75 in
Wire Size
#12 AWG to #10 AWG
Height
2.26 in
Dimensions
2.75 in x 2.26 in x 2.26 in
Width
2.26 in

Details

Item
Locking Plug
NEMA Plug Configuration
L24-20P
Current Rating
20 A
Voltage Rating
347V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
Terminals identified in accordance with UL 498
Resistance Properties
Moisture Resistance
Material
Nylon
Application
Extra Heavy Duty Industrial
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Material - Mounting Hardware
Cord Mounted
Cord Range
0.360"-0.930" (9-24)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Type
All Listed Portables
Amperage Rating
20 A

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Male Plug, 20A 347V AC, 2-Pole 3-Wire Grounding, L24-20P, ScrewTerminal, Black and White
