  11. Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

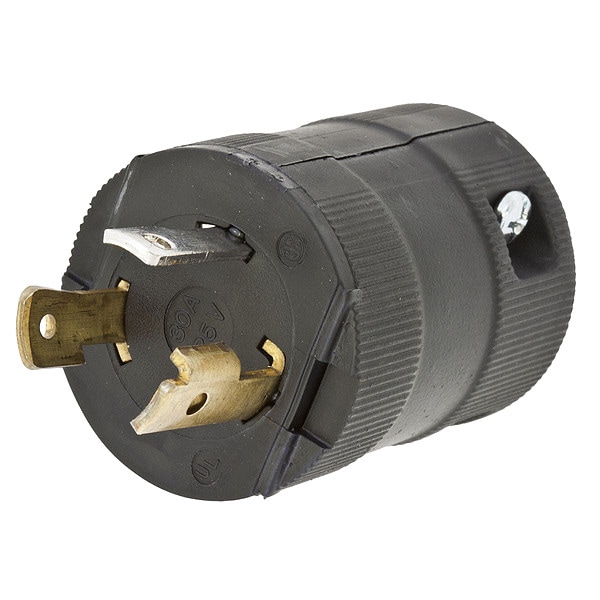

Hubbell Wiring Device-Kellems Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL2611VBK - main

Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL2611VBK

  • Zoro # G1943024

product price: $24.19
/ea

Key Features

NEMA Plug Configuration
L5-30P
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2611VBK
Zoro #
G1943024
UPC #
783585043128
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.93 in
For Minimum Cable Diameter
0.59 in
Cord Size
0.590 in to 0.930 in
Minimum Wire Size
14 AWG
Body Length
1.78 in
Face Diameter
1.781 in
Maximum Wire Size
8 AWG
Length
1.78 in
Wire Size
#14 AWG to #8 AWG
Dimensions
1.78 in x 1.78 in x 2.5 in
Width
1.78 in
Height
2.5 in

Details

Item
Locking Plug
NEMA Plug Configuration
L5-30P
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
Grade
Industrial
Application
Extra Heavy Duty Industrial
Horsepower Rating
2 hp
For Location
Indoor
Blade Material
Brass
Polarized
Yes
Housing Material
Nylon
For Environment
Dry
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
Market
Industrial
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Cord Type
All Listed Portables
Amperage Rating
30 A
Cord Range
0.590"-0.930" (15.0-23.6)
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #14 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Antimicrobial
No
Amps
30

Description

• Powerful cord grip prevents conductor slippage and strain on wiring terminals
• Totally insulated impact and crush resistant nylon body
• Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
