  11. Locking Plug, L7-15P, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

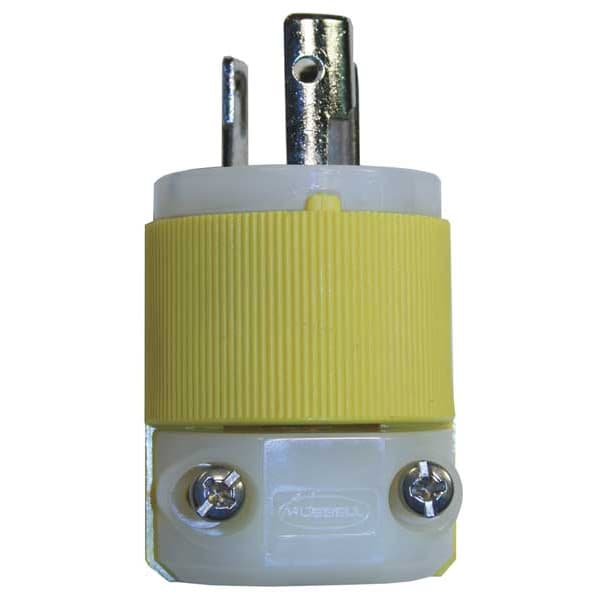

Hubbell Wiring Device-Kellems Locking Plug, L7-15P, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Yellow HBL47CM70C - main

Locking Plug, L7-15P, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

  • Mfr # HBL47CM70C

  • Zoro # G7221462

product price: $25.69
/ea

Key Features

NEMA Plug Configuration
L7-15P
Current Rating
15 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL47CM70C
Zoro #
G7221462
UPC #
783585160900
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.23 in
Cord Size
0.230 in to 0.720 in
Maximum Wire Size
10 AWG
Body Length
1.53 in
Minimum Wire Size
18 AWG
Outside Diameter
1.527 in
Length
1.53 in
Wire Size
#18 AWG to #10 AWG
Height
1.97 in
Dimensions
1.53 in x 1.53 in x 1.97 in
Width
1.53 in

Details

Item
Locking Plug
NEMA Plug Configuration
L7-15P
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant
Material
Nylon
Grade
Marine
Application
Extra Heavy Duty Industrial
For Location
Indoor
Blade Material
Brass
For Environment
Dry
Market
Industrial
Horsepower Rating
2 hp
Maximum Operating Temperature
75 Degrees C
Housing Material
Nylon
Polarized
Yes
Minimum Operating Temperature
-40 Degrees C
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Cord Mounted
Cord Type
All Listed Portables
Dielectric Strength
Withstands 2,000V minimum
Cord Range
0.325"-0.655"(8.3-16.6)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Antimicrobial
No
Amps
15

Description

• Individually molded face for each blade configuration
• Roomy wiring chamber provides ample space for wiring
• Ribbed nylon housing provides a secure grip that’s impact and chemical resistant
