  11. Locking Plug, Non-NEMA, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Gray

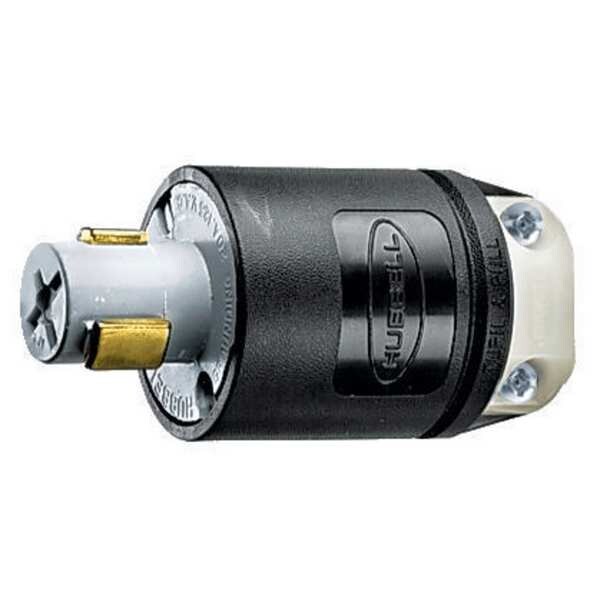

Hubbell Wiring Device-Kellems Locking Plug, Non-NEMA, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Gray HBL23004HG - main

Locking Plug, Non-NEMA, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Gray

  • Mfr # HBL23004HG

  • Zoro # G0947107

product price: $273.99
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL23004HG
Zoro #
G0947107
UPC #
783585015736
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.66 in
For Minimum Cable Diameter
0.30 in
Cord Size
0.300 in to 0.660 in
Body Length
2.31 in
Outside Diameter
1.72 in

Details

Item
Locking Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Gray
IP Rating
IP20
Standards
CSA Certified, UL Listed
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Bakelite
Grade
Hospital
Carton Quantity
30
Housing Material
Metallic
Polarized
Yes
Housing Material Finish
Epoxy Coated
NEMA Configuration
Non-NEMA, 3 Blade
Antimicrobial
No
Amps
20

Description

The HUBBELL 20A Hospital Locking Plug is a hospital grade, non-NEMA locking plug intended for use in environments requiring locking plug configurations. It features a metallic housing with an epoxy-coated finish and bakelite construction, constructed with materials that provide chemical and impact resistance. This plug accommodates cords from 0.300 in to 0.660 in diameter and uses screw terminals for wire connection.


Key Features of the HUBBELL 20A Hospital Locking Plug:

  • Current/Voltage Rating: Rated for 20 A at 125V AC, single phase

  • Configuration: Non-NEMA, polarized design with straight connection orientation

  • Cord Size Compatibility: Accepts cable diameters from 0.30 in to 0.66 in

  • Material & Finish: Metallic housing with epoxy coating; bakelite body construction

  • Wire Connection Type: Standard wiring style using screw terminals

  • Number of Poles/Wires/Blades: Two poles, three wires, three blades; grounded configuration

  • Resistance Properties: Chemical resistant and impact resistant construction

  • Grade & Standards: Hospital grade; CSA Certified and UL Listed

  • IP Rating: IP20 (protection against solid objects greater than 12 mm)
