  11. Locking Plug, Non-NEMA, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

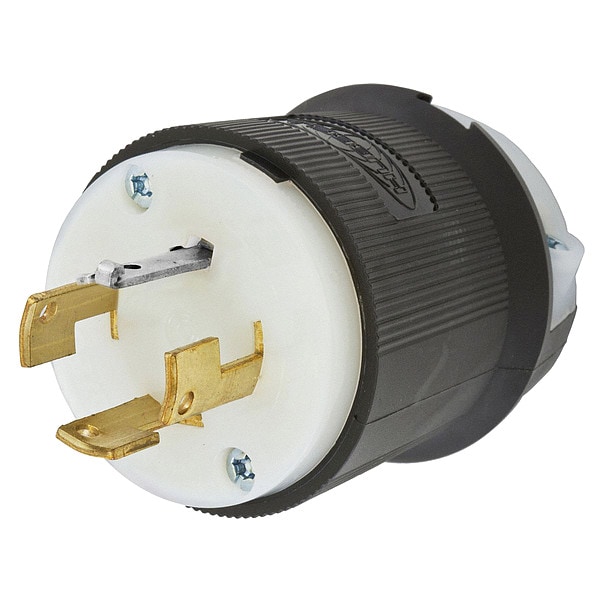

Hubbell Wiring Device-Kellems Locking Plug, Non-NEMA, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White HBL7411GCB - main

Locking Plug, Non-NEMA, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # HBL7411GCB

  • Zoro # G1519384

product price: $46.78
/ea

Key Features

Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7411GCB
Zoro #
G1519384
UPC #
783585037578
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Cord Size
0.350 in to 1.150 in
Outside Diameter
2.33 in
Body Length
2.33 in
Maximum Wire Size
8 AWG
Face Diameter
2.21 in
Minimum Wire Size
16 AWG
Length
2.33 in
Wire Size
#16 AWG to #8 AWG
Width
2.33 in
Dimensions
2.33 in x 2.33 in x 2.75 in
Height
2.75 in

Details

Item
Locking Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
Grade
Industrial
Application
Extra Heavy Duty Industrial
Blade Material
Brass
Polarized
Yes
Housing Material
Nylon
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
For Environment
Dry
For Location
Indoor
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Dielectric Strength
Withstands 2,000V minimum
Cord Range
0.350"-1.150" (9-29)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
20 A
Material - Mounting Hardware
Cord Mounted
Cord Type
All Listed Portables
NEMA Configuration
Non-NEMA, 4 Blade
Amps
20
Antimicrobial
No

Description

• Ribbed nylon housing provides a secure grip and impact and chemical resistance.
• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.
