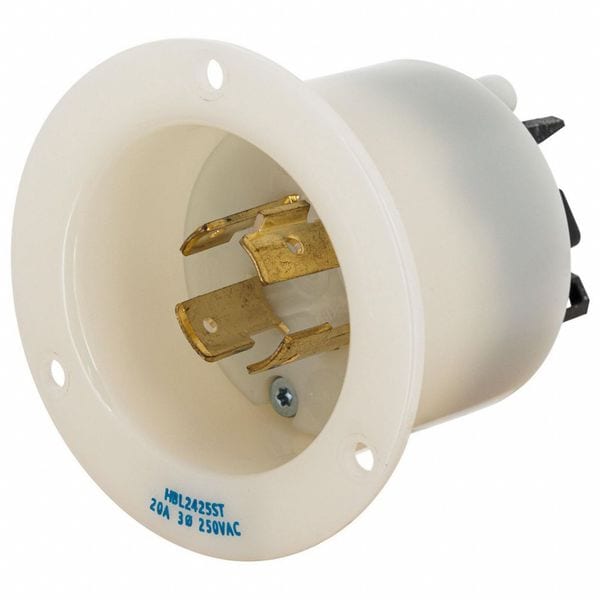

Locking Receptacle, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Spring Clamp Terminals, White

The HUBBELL Locking Receptacle is a three-phase, 20A, 250V AC electrical receptacle suitable for indoor use. It features a flanged design with spring clamp terminals that allow for faster wire termination without the need for screwdrivers or torque wrenches. The receptacle supports backwired connections and accommodates copper wires ranging from 14 AWG to 8 AWG.

Key Features of the HUBBELL Locking Receptacle:

• NEMA Configuration: L15-20R (compatible with L15-20P plugs)


• Current/Voltage Rating: Rated for 20 A at 250V AC


• Phase/Poles/Wires: Three-phase; 3 poles, 3 wires; grounded


• Wire Connection Type: Spring clamp terminals enable wire termination without screwdrivers or torque wrenches


• Copper Wire Range Included: Accepts copper wire sizes from 14 AWG to 8 AWG


• Temperature Range: Operates between -40°C and +75°C maximum temperature


• Housing Material & Finish: Nylon housing in natural finish; UL94 HB flammability rating


• Horsepower Rating: Rated for applications up to 3 hp


• Standards Compliance: Meets CSA C22.2 No.42, Federal Specification W-C-596, and UL498 standards


• IP Rating: IP20 – suitable for indoor locations only
