  6. Locking Receptacle, Non-NEMA, 60 A, 600V AC, Single Phase, 4 Pole, Flush Mount, Screw Terminals

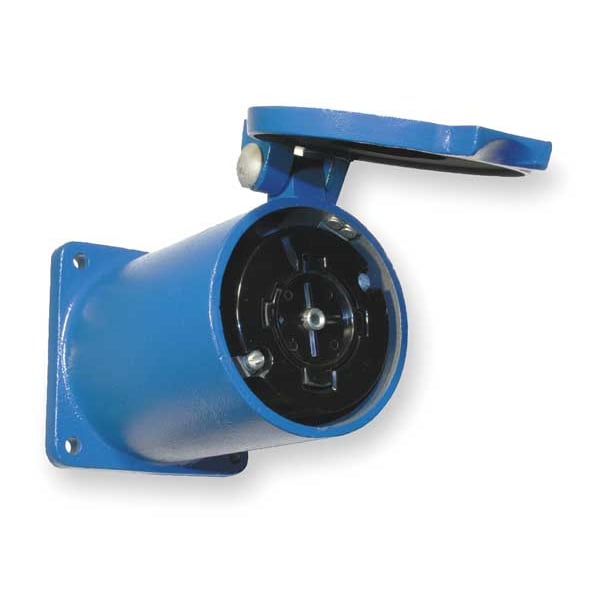

Hubbell Wiring Device-Kellems Locking Receptacle, Non-NEMA, 60 A, 600V AC, Single Phase, 4 Pole, Flush Mount, Screw Terminals HBL26520 - main

Locking Receptacle, Non-NEMA, 60 A, 600V AC, Single Phase, 4 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL26520

  • Zoro # G1193701

product price:  $657.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
60 A
Voltage Rating
600V AC
Phase
Single
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL26520
Zoro #
G1193701
UPC #
783585017518
Country of Origin
United States

Dimensions

Minimum Wire Size
8 AWG
Maximum Wire Size
4 AWG
Wire Size
#6 AWG
Width
4.62 in
Dimensions
3.5 in x 4.62 in x 4.96 in
Length
3.5 in
Height
4.96 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
Non-NEMA
Current Rating
60 A
Voltage Rating
600V AC
Phase
Single
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Blue
Mount Type
Flush
Cover Type
Flip-Up Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified, UL Listed
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Flanged
Special Features
With Cover
Material
Nylon
Grade
Industrial
Mounting Type
Flush Mount
Wiring Style
Standard
Flange Shape
Rectangular
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Connection Orientation
Straight
Number of Gangs
1
Maximum Operating Temperature
167 Degrees F
Market
Industrial
For Environment
Dry
For Location
Indoor
AFCI
No
Contact Material
Copper Alloy
Housing Material
Aluminum
Flammability
UL 94 V0
Base Material
Cast Aluminum
Terminal Designations
Terminals identified in accordance with UL 498
Spring Material
.032" Bronze
Lock Type
Hubbellock
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Environmental - Flammability - UL 94 V0 Environmental - Moisture Resistance - IP44 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #8 AWG - #4 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating
60 A
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Application
Heavy Duty Industrial
NEMA Rating
12, 4X
Amps
60

Description

The HUBBELL 60A Locking Receptacle is an industrial electrical device rated for use in specified environments. This flush-mount, non-NEMA locking receptacle features a four-pole, five-wire configuration and is rated for up to 60 amps at 600V AC. The unit incorporates a cast aluminum base with a nylon housing and includes spring-loaded safety shutters.


Key Features of the HUBBELL 60A Locking Receptacle:

  • Amperage/Voltage Rating: Rated for 60 A and 600V AC operation

  • Configuration: Four poles, five wires; polarized design

  • Material Construction: Cast aluminum base with nylon housing; copper alloy contacts

  • Mounting Type: Flush mount with screw mounting hardware; rectangular flange shape

  • Cord Grip & Strain Relief: Mechanical cord grips clamp down on conductors for strain relief

  • Spring-Loaded Safety Shutter: Contains arcing when mating/unmating devices under load and automatically ejects plug

  • Box Terminals & Screws: Stainless steel screws

  • NEMA Enclosure Rating/IP Rating: NEMA Type 12, 4X enclosure rating; IP20 ingress protection (moisture resistant)

  • Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use

  • Flammability/Standards Compliance: UL 94 V0 flammability rating; CSA certified and UL listed standards compliance
