  11. Locking Receptacle, L14-30R, 30 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals

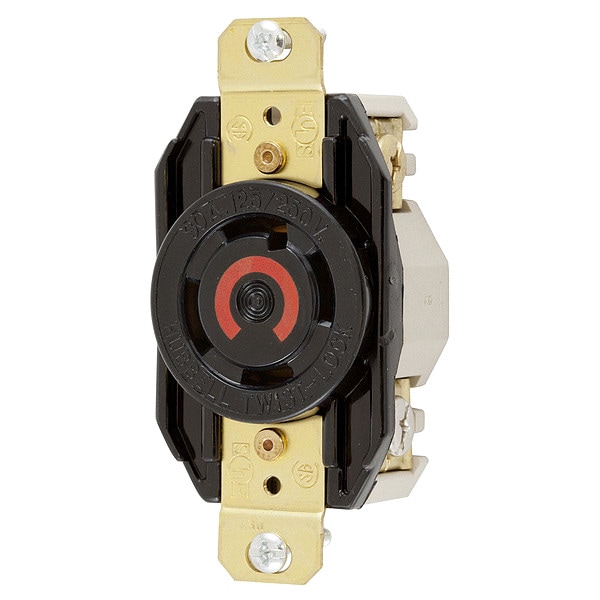

Hubbell Wiring Device-Kellems Locking Receptacle, L14-30R, 30 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals HBL2710 - main

Locking Receptacle, L14-30R, 30 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL2710

  • Zoro # G1113761

product price: $69.86
/ea

Key Features

NEMA Receptacle Configuration
L14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2710
Zoro #
G1113761
UPC #
783585236087
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
#10 AWG
Length
3.28 in
Dimensions
3.28 in x 1.7 in x 1.31 in
Width
1.7 in
Height
1.31 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
1
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant
Flange Type
Non-Flanged
Wiring Style
Standard
Mounting Type
Flush Mount
Material
Nylon
Grade
Industrial
Special Features
Corrosion resistant
AFCI
No
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Horsepower Rating
2 hp
Includes Mounting Hardware
Yes
Maximum Operating Temperature
167 Degrees F
Housing Material
Nylon
Connection Orientation
Straight
For Location
Indoor
Includes
Mounting Hardware
Market
Industrial
For Environment
Dry
Number of Gangs
1
Contact Material
Brass
Base Material
Nylon Polyester
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Spring Material
.040" Brass
Lock Type
Twist-lock
Terminal Designations
Terminals identified in accordance with UL 498
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
Application
Heavy Duty Industrial
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
30 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amps
30

Description

The HUBBELL 30A Twist-Lock Receptacle L14-30R is a locking receptacle rated for use in industrial applications where a secure electrical connection is needed. It includes a twist-lock mechanism intended to reduce the likelihood of accidental disconnection and supports single-phase, 3-pole, 4-wire configurations at 125/250V AC. The device is constructed with nylon housing and brass contacts.


Key Features of the HUBBELL 30A Twist-Lock Receptacle L14-30R:

  • Amperage/Voltage: Rated for 30 A, 125/250V AC operation

  • NEMA Configuration: L14-30R (3-pole, 4-wire)

  • Mounting Type: Flush mount with included screw mounting hardware

  • Material Construction: Nylon polyester base and housing; all-brass mounting and grounding system enhances corrosion resistance

  • Wire Accommodation: Accepts #16 AWG to #8 AWG solid or stranded copper wire via screw terminals; wire restraint recess reduces terminal loosening risk

  • Dielectric Strength & Flammability: Withstands minimum 2,000V dielectric voltage; UL94 V-2 flammability rating or better

  • Operating Temperature Range: -40°C to +75°C (without impact), maximum continuous temperature rise of 30°C at full rated current after overload cycles

  • NEMA Enclosure/IP Rating: NEMA Type 1 enclosure; IP20 suitability for indoor dry locations unless otherwise protected

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, listed to UL498 standards
