  6. Flanged Locking Inlet, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White

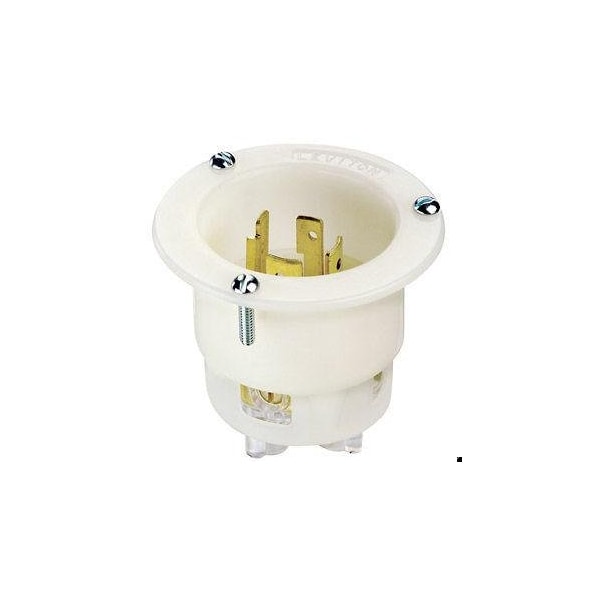

Leviton Flanged Locking Inlet, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White 7408-C - main

Flanged Locking Inlet, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White

  • Mfr # 7408-C

  • Zoro # G716091382

product price:  $45.99
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7408-C
Zoro #
G716091382
UPC #
078477829714
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Face Diameter
2.69 in
Minimum Wire Size
18 AWG
Overall Depth
2.27 in
Flange Diameter
3.8 in
Mount Hole Center-to-Center Height
1.75 in
Mount Hole Center-to-Center Width
0.94 in

Details

Item
Flanged Locking Inlet
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Non-Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
ANSI C-73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 57, RoHS, UL FED SPEC WC-596 File E13393, UL498 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
IP Rating
Not Rated
Flange Material
Nylon
Wiring Style
Hinged
NEMA Enclosure Rating
Not Rated
Market
Industrial
NEMA Plug Configuration
Non-NEMA
Maximum Operating Temperature
60 Degrees C
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees C
For Environment
Dry
Features
Accepts Slotted and Phillips Head Drivers
Flange Shape
Round
Number of Blades
3
Polarized
Yes
Number of Outlets
1
Number of Gangs
1
Includes
Mounting Hardware
Shrouded
Yes
UL 94 Flammability Rating
V-2
Grade
Federal Specification
Midget Locking
No
Horsepower Rating
3 hp
Series
Insulgrip
Connection Orientation
Straight

Description

Flanged Inlet Locking Receptacle
