Shop HUBBELL WIRING DEVICE-KELLEMS

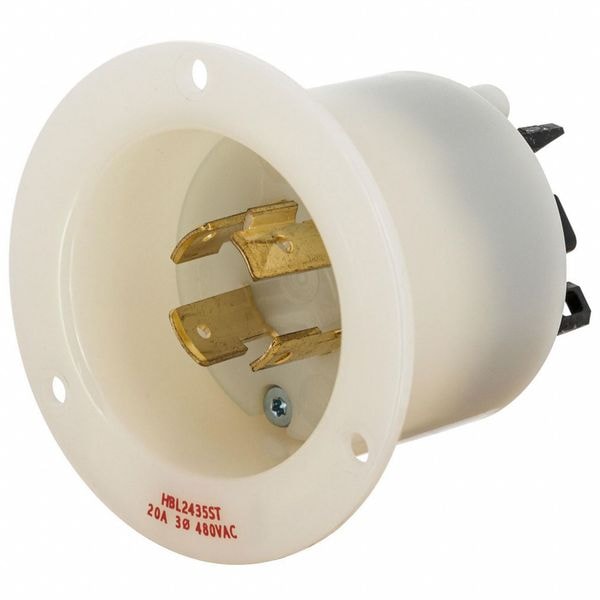

Locking Receptacle, 20 A, 480V AC, Three Phase, 3 Pole, Flush Mount, Spring Clamp Terminals, White

  • Mfr # HBL2435ST

  • Zoro # G906171313

product price:  $43.47
/ea

Key Features

NEMA Receptacle Configuration
L16-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2435ST
Zoro #
G906171313
UPC #
783585681689
Country of Origin
China

Dimensions

Face Diameter
2.23 in
Overall Depth
2.47 in
Maximum Wire Size
8 AWG
Minimum Wire Size
14 AWG
Face Plate Width
0.09 in
Flange Diameter
2.69 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L16-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
5
Wire Connection Type
Spring Clamp Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
IP Rating
IP20
Grade
Federal Specification
For Location
Indoor
Market
Industrial
Horsepower Rating
5 hp
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Housing Material
Nylon
Housing Material Finish
Natural
Includes
14 AWG - 8 AWG Copper Wire
NEMA Plug Configuration
L16-20P
Number of Blades
4
Shrouded
No
NEMA Configuration
L16-20
Blade Material
Copper Alloy
UL 94 Flammability Rating
HB

Description

The HUBBELL Locking Receptacle is a flanged, three-phase electrical receptacle intended for indoor industrial applications. It features spring clamp terminals allow wire termination without the use of screwdrivers or torque wrenches. The backwired design and funnel-shaped wire entry facilitate installation and connection, accommodating copper wires ranging from 14 AWG to 8 AWG.


Key Features of the HUBBELL Locking Receptacle:

  • NEMA Configuration: L16-20R receptacle compatible with L16-20P plugs

  • Current/Voltage Rating: Rated for 20 A at 480V AC, three-phase

  • Wire Connection Type: Spring clamp terminals are used for wire connection

  • Number of Poles/Wires: 3 poles, 5 wires; grounded configuration

  • Horsepower Rating: Rated for use with equipment requiring up to 5 horsepower

  • Copper Wire Range Included: Accepts copper conductors from 14 AWG to 8 AWG

  • Operating Temperature Range: -40°C minimum to +75°C maximum

  • Housing Material/Finish: Nylon housing with natural finish; UL 94 HB flammability rating

  • IP Rating: IP20 (protection against solid objects larger than 12 mm)

  • Standards Compliance: Meets CSA C22.2 No.42, Federal Specification W-C-596, UL 498 requirements
