  11. Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Surface Mount, Screw Terminals

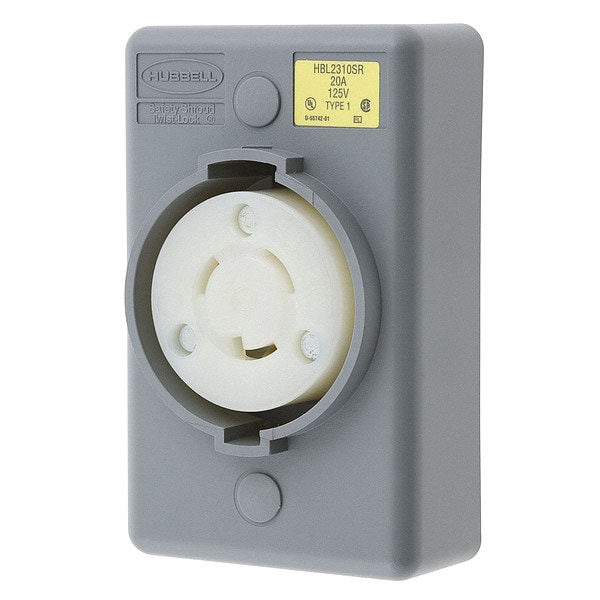

Hubbell Wiring Device-Kellems Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Surface Mount, Screw Terminals HBL2310SR - main

Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Surface Mount, Screw Terminals

  • Mfr # HBL2310SR

  • Zoro # G2653244

product price: $37.79
/ea

Key Features

NEMA Receptacle Configuration
L5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2310SR
Zoro #
G2653244
UPC #
783585234021
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
#14 to #8 AWG Copper Only

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Gray
Mount Type
Surface
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Flange Type
Non-Flanged
Material
Thermoplastic
Special Features
Corrosion resistant
Mounting Type
Surface Mount
Grade
Industrial
Wiring Style
Standard
Number of Gangs
1
Market
Industrial
For Location
Indoor
AFCI
No
For Environment
Dry
Contact Material
Brass
Housing Material
Valox
Connection Orientation
Straight
Polarized
Yes
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Flange Material
Gray Valox 357U
Spring Material
.031" Brass
Lock Type
Twist-lock
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Amps
20

Description

The HUBBELL 20A Twist-Lock Receptacle L5-20R is a locking receptacle rated for use in indoor, dry locations. It features a twist-lock mechanism.


Key Features of the HUBBELL 20A Twist-Lock Receptacle L5-20R:

  • NEMA Configuration: L5-20R, rated for 125V AC, single phase, 2-pole/3-wire

  • Current Rating: Rated for up to 20 amps

  • Wire Size Compatibility: Accepts #14 to #8 AWG copper wire via screw terminals

  • Housing Material: Valox thermoplastic

  • Mounting Type: Surface mount design with non-flanged construction

  • Temperature Range: Operates from -40°F to 167°F (continuous)

  • Special Features: Corrosion resistant; alignment arrows indicate lock/unlock status; visible catalog number and voltage rating during use

  • Contact/Spring Material: Brass contacts and .031" brass springs for reliable conductivity

  • Flammability Rating: UL94 V-2 or better per CSA standards

  • NEMA Enclosure/IP Rating: NEMA Type 1 enclosure; IP20 protection level (for indoor use only)

  • Certain Standards Met: UL 498 listed, CSA Certified C22.2 No.42, Federal Specification W-C-596 compliant
