Shop HUBBELL WIRING DEVICE-KELLEMS

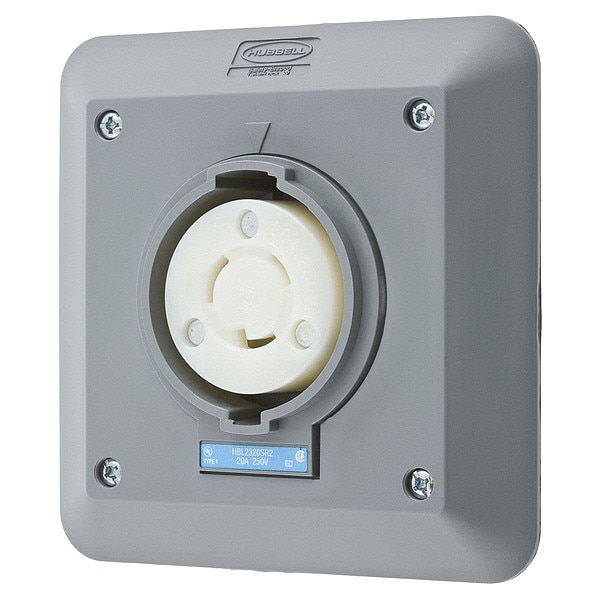

Locking Receptacle, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, Gray

  • Mfr # HBL2320SR2

  • Zoro # G2515694

product price:
$
37.79
/ea

Key Features

NEMA Receptacle Configuration
L6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2320SR2
Zoro #
G2515694
UPC #
783585234120
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#14 to #8 AWG Copper Only

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Grade
Industrial
Mounting Type
Semi Flush Mount
Wiring Style
Standard
Material
Impact Modified PBT
Special Features
Corrosion resistant
IP Rating
IP20
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Horsepower Rating
2 hp
Housing Material
Valox
Contact Material
Brass
Number of Gangs
2
Shrouded
Yes
Connection Orientation
Straight
NEMA Enclosure Rating
12, 4, 4X
AFCI
No
For Environment
Dry
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
Spring Material
.031" Brass
Flammability
VO or better
Lock Type
Twist-lock
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Amps
20
UL 94 Flammability Rating
V-2

Description

The HUBBELL 20A Twist-Lock Receptacle (L6-20R) is a locking receptacle rated for 20 amps and 250V AC, suitable for specified applications. It features a twist-lock mechanism connects compatible plugs, with alignment arrows and lock/unlock symbols for visual confirmation of proper connection. The receptacle accepts both shrouded and standard NEMA locking plugs, with catalog number and voltage rating visible during operation. Its thermoplastic housing is rated as impact resistant and corrosion resistant, making it suitable for heavy-duty indoor applications in dry locations.


Key Features of the HUBBELL 20A Twist-Lock Receptacle L6-20R:

  • NEMA Configuration: L6-20R; Lock type: Twist-lock

  • Current/Voltage Rating: 20 A, 250V AC; Phase: Single

  • Number of Poles/Wires: 2 poles, 3 wires; Grounded design

  • Wire Size Compatibility: Accepts #14 to #8 AWG copper wire via screw terminals

  • Housing Material: Impact modified PBT (Valox); Flammability rating VO or better

  • Operating Temperature Range: -40°F to 167°F (-40°C minimum without impact)

  • NEMA Enclosure Ratings: Types 1, 4, 4X & IP20 ingress protection

  • Certain Resistance Properties: Corrosion resistant and impact resistant construction

  • Semi flush mount installation; Shrouded design supports plug retention

  • Standards Compliance: UL 498 listed, CSA Certified C22.2 No.42, Federal Specification W-C-596
