  11. Locking Receptacle, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

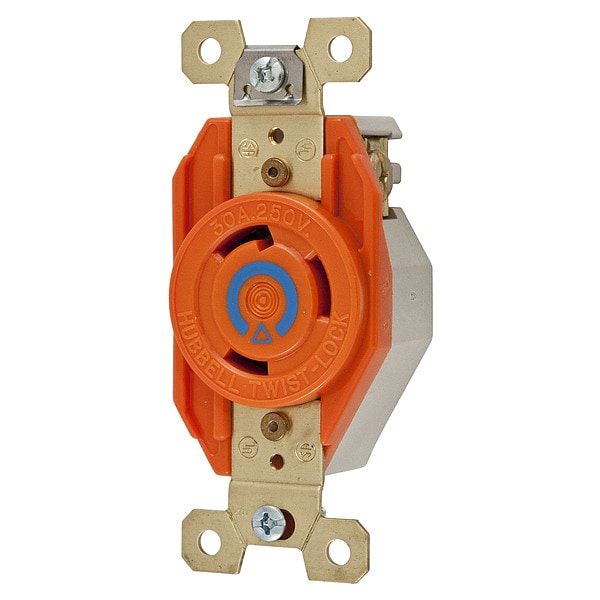

Hubbell Wiring Device-Kellems Locking Receptacle, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals IG2620 - main

Locking Receptacle, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # IG2620

  • Zoro # G0831065

product price: $57.11
/ea

Key Features

NEMA Receptacle Configuration
L6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG2620
Zoro #
G0831065
UPC #
783585872346
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
#12 AWG
Dimensions
3.28 in x 1.70 in x 1.31 in
Width
1.70 in
Length
3.28 in
Height
1.31 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Non-Flanged
Material
Nylon
Wiring Style
Standard
Mounting Type
Flush Mount
Special Features
With Isolated Ground
Grade
Industrial
Number of Gangs
1
AFCI
No
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
For Environment
Dry
Connection Orientation
Straight
Housing Material
Nylon
Includes
Mounting Hardware
Market
Industrial
For Location
Indoor
Includes Mounting Hardware
Yes
Horsepower Rating
2 hp
Maximum Operating Temperature
167 Degrees F
Lock Type
Twist-lock
Base Material
Nylon Polyester
Spring Material
.040" Brass
Terminal Designations
Terminals identified in accordance with UL 498
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Material - Mounting Hardware
Screw Mounting
Performance
Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #16 - #8 AWG solid or stranded copper wire Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
Application
Heavy Duty Industrial
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
30 A
Amps
30

Description

The HUBBELL 30A Isolated Ground Locking Receptacle is an Industrial-grade device rated for use in indoor, dry locations. This flush-mount receptacle features an isolated ground system to separate the grounding contacts from the mounting strap and conventional grounding, suitable for applications requiring isolated grounding. It accommodates two poles and three wires with a twist-lock mechanism, rated for 30 amps at 250V AC.


Key Features of the HUBBELL 30A Isolated Ground Locking Receptacle:

  • Isolated Ground: Insulation barrier construction isolates ground contact from mounting strap for dedicated grounding circuits.

  • Amperage/Voltage Rating: Rated for 30 A and 250V AC operation; NEMA L6-30R configuration.

  • Material Construction: High-impact nylon face and housing with brass contacts; constructed with materials rated for impact resistance.

  • Wiring Capability: Accepts #16 – #8 AWG solid or stranded copper wire via screw terminals; supports both back and side wiring.

  • Mounting Type: Flush mount installation with included screw hardware; single gang application.

  • Operating Temperature Range: -40°C to +75°C (without impact); maximum continuous use at 75°C.

  • Certifications & Standards: Listed to UL 498, CSA C22.2 No.42, Federal Specification W-C-596; flammability rating V2 or better per UL94/CSA standards.

  • Dielectric Strength & Performance: Rated to withstand a dielectric voltage of 2,000V; listed as current interrupting at the specified rating.
