  11. Locking Receptacle, Non-NEMA, 60 A, 600V AC, Multi Phase, 3 Pole, Screw Terminals, Silver

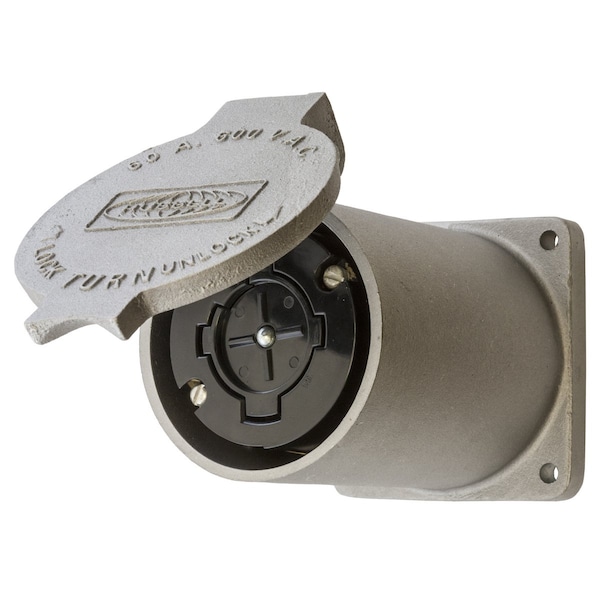

Hubbell Wiring Device-Kellems Locking Receptacle, Non-NEMA, 60 A, 600V AC, Multi Phase, 3 Pole, Screw Terminals, Silver HBL26420 - main

Locking Receptacle, Non-NEMA, 60 A, 600V AC, Multi Phase, 3 Pole, Screw Terminals, Silver

  • Mfr # HBL26420

  • Zoro # G300701659

product price: $891.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
60 A
Voltage Rating
600V AC
Phase
Multi
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL26420
Zoro #
G300701659
UPC #
783585017495
Country of Origin
United States

Dimensions

Wire Size
#6AWG
Width
4.32 in
Length
3.5 in
Dimensions
3.5 in x 4.32 in x 4.96 in
Height
4.96 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
Non-NEMA
Current Rating
60 A
Voltage Rating
600V AC
Phase
Multi
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Silver
Cover Type
Flip-Up Cover
IP Rating
IP44
Standards
CSA Certified, UL Listed
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Flanged
Special Features
Molded In or Stamped On
Material
Steel,Nickel plate
Application
Heavy Duty Industrial
Base Material
Cast Aluminum
Spring Material
.032" Bronze
Terminal Designations
Terminals identified in accordance with UL 498
Flammability
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Lock Type
Hubbellock
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Environmental - Flammability - UL 94 V0 Environmental - Moisture Resistance - IP44 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #8 AWG - #4 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Mount Type
Screw Mounting

Description

Hubbell Wiring Device Kellems, Locking Devices, Hubbellock, Industrial,Receptacle, 60A 600V AC, 3-Pole 4-Wire Grounding, Non NEMA, ScrewTerminal, Cast Aluminum, Long Housing
