  13. Marine Lighted Toggle Switch, SPST, 4 Connections, On/Off, 15A at 12VDC

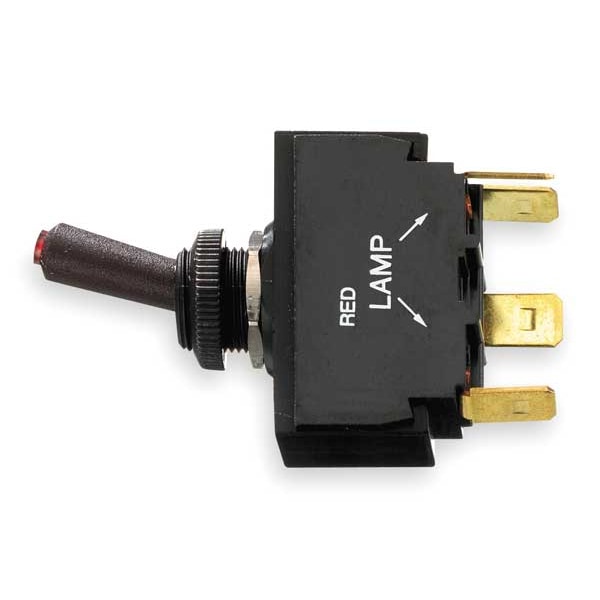

Hubbell Wiring Device-Kellems Marine Lighted Toggle Switch, SPST, 4 Connections, On/Off, 15A at 12VDC M11LTR - main

Marine Lighted Toggle Switch, SPST, 4 Connections, On/Off, 15A at 12VDC

  • Mfr # M11LTR

  • Zoro # G2701246

product price: $32.69
/ea

Key Features

Switch Function
On/Off
Contact Form
SPST
Actuator Style
Toggle with Lighted Tip - Red
Amps
15A @ 12VDC
Number of Connections
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M11LTR
Zoro #
G2701246
UPC #
783585845500
Country of Origin
China

Dimensions

Stem Length
0.37 in
Actuator Length
0.6 in
Stem Dia. and Thread Size
0.47"-32 UNC-2A, 0.480 in dia
Mounting Hole Diameter
0.48 in
Overall Depth
2.35 in
Stem Diameter
0.48 in
Manufacturer Warranty Length
1 yr
Overall Width
1.37 in
Stem Thread Size
15/32-32 UNC-2A
Overall Height
0.75 in

Details

Switch Function
On/Off
Contact Form
SPST
Actuator Style
Toggle with Lighted Tip - Red
Amps
15A @ 12VDC
Number of Connections
4
Terminals
1/4 in Solder Lug/Quick Connect Tab
Actuator Color
Black
Includes
Red Pilot Light
Recommended Use
Accessories, Bilge Blower, Bilge Pumps, Lights
DC Contact Rating
15 A @ 12 V
Operating Temp. Range
-10 Degrees to 105 Degrees F
Stem Color
Black
Mounting Hole
0.50 in dia
Item
Marine Toggle Switch
IP Rating
Not Rated
Carton Quantity
10
Product Type
Marine Toggle Switch
Series
MARINE
Color
black
DC Product Type
Panel Mount Toggle Switch
Typical Applications
Lights, bilge blower, bilge pump(s), accessories
Description
Single Pole, Single Throw On/Off
Enhancement
Lighted Tip
Resistance Properties
Corrosion Resistant
Operating Temperature - Minimum
-10 Degrees F
Terminal Connection Type
Screw Terminals
Number of Positions
2
Base Type
Flat
Features
Red Pilot Light
Operating Temperature - Maximum
105 Degrees F
Operator Illumination Style
Pilot Light
NEMA Enclosure Rating
No Enclosure
Switch Function Configuration
On/Off
Number of Poles
1

Description

Marine Toggle Switch, Contact Form SPST, Number of Connections 4, Switch Function On/Off, AC Contact Rating Not Applicable, Terminals 1/4 in Solder Lug/Quick Connect Tab, Mounting Hole 0.50 in dia, DC Contact Rating 15 A @ 12 V, Actuator Style Toggle w/Lighted Tip - Red, Actuator Length 0.6 in, Stem Length 0.37 in, Stem Dia. and Thread Size 0.47 In.-32 UNC-2A, 0.480 in dia, Operating Temp. Range -10 Degrees to 105 Degrees F, Actuator Color Black, Stem Color Black, Includes Red Pilot Light
