  11. Pilot Lit Wall Swtch, 1-Pole, 120/277V, 15A

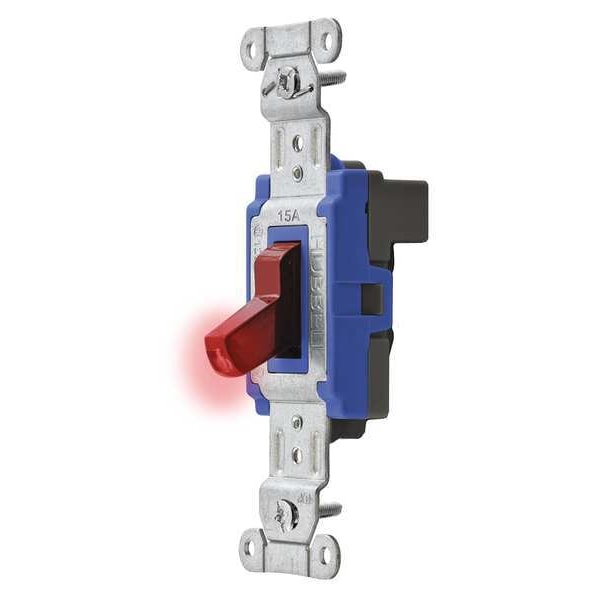

Hubbell Wiring Device-Kellems Pilot Lit Wall Swtch, 1-Pole, 120/277V, 15A SNAP1201PLR - main

Pilot Lit Wall Swtch, 1-Pole, 120/277V, 15A

  • Mfr # SNAP1201PLR

  • Zoro # G4616421

product price: $16.85
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Red
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1201PLR
Zoro #
G4616421
UPC #
783585186504
Country of Origin
United States

Dimensions

Overall Width
1.3 in
Overall Height
1.7 in
Height
1.74 in
Width
1.3 in
Length
4.18 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Pilot Light Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Red
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Antimicrobial
No
Rated HP
1/2 to 2
Description/Special Features
Light On with Load On
Standards
UL Listed
Wire Connection Type
Modular Wiring
Horsepower Rating
2 hp
Pilot Light
Yes
Maximum Operating Temperature
167 Degrees F
Voltage Rating
120/277V AC
Resistance Properties
Impact Resistant
Number of Switches
1
Minimum Operating Temperature
-40 Degrees F
Housing Material
Thermoplastic
Current Rating
15 A
Market
Industrial
Type
Toggle
Style
Single Pole
Terminals
Brass
Temperature Rise
30°C maximum at rated current
Max. Continuous Current
15A
Base Material
Thermoplastic, Black
Toggle Color
Red
Contacts
Silver Alloy
Flammability
UL 94V-2
Toggle Material
Thermoplastic
Max. Working Voltage
277V AC
Top Material
Thermoplastic, Blue
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Overload
Minimum 4.8 times rated current for 100 cycles
Terminal Accommodations
Uses SNAPConnect Connector
Material
Thermoplastic
Industry Standard(s)
UL Listed
Item Type
Single Pole Pilot Toggle Switch
Voltage Rating Description
120-277 VAC
Amperage Rating
15 A
Indicator(s) Type
Red LED
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Series
Pilot Light
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Indicator
Light On with Load On
Number Of Poles
Single Pole
Temperature Rise - Max.
30°C maximum at rated current
Current / Amperage Rating
15 A

Description

Pilot Light Wall Switch, Color Red, Current Rating 15 A, Pilot Light Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
