  11. Pilot Lit Wall Swtch, 1-Pole, 120/277V, 20A

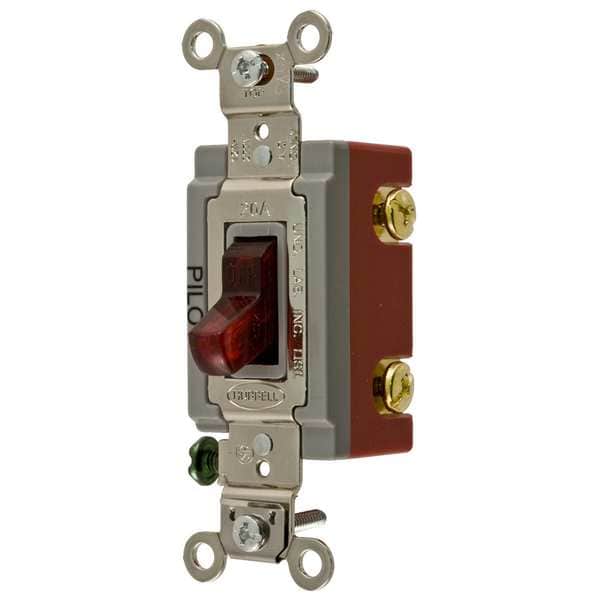

Hubbell Wiring Device-Kellems Pilot Lit Wall Swtch, 1-Pole, 120/277V, 20A HBL1221PL - main

Pilot Lit Wall Swtch, 1-Pole, 120/277V, 20A

  • Mfr # HBL1221PL

  • Zoro # G0282563

product price: $52.25
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Red
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1221PL
Zoro #
G0282563
UPC #
783585431468
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Overall Width
1.3 in
Minimum Wire Size
14 AWG
Overall Height
1.9 in

Details

Item
Pilot Light Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Red
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Standards
UL Listed
Description/Special Features
Light On with Load On
Antimicrobial
No
Rated HP
1
Market
Industrial
Current Rating
20 A
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Minimum Operating Temperature
-40 Degrees F
Number of Switches
1
Switch Material
Nylon
Pilot Light
Yes
Maximum Operating Temperature
167 Degrees F
Voltage Rating
120/277V AC
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Horsepower Rating
1 hp
Wire Connection Type
Screw Terminals
Nylon Wall Plate
NP1R
Overload
Minimum 4.8 times rated current for 100 cycles
Max. Working Voltage
277V AC
Product Type
AC Special Purpose Switches
Temperature Rise
30°C maximum at rated current
Terminal Accommodations
#14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Approvals
UL, CSA
Enhancement
Pilot
Toggle Color
Red
Actuator Type
Toggle
Flammability
UL 94V-2
Rating
20A 120/277V
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Continuous Current
20A

Description

Pilot Light Wall Switch, Color Red, Current Rating 20 A, Pilot Light Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals
