  11. Pilot Lit Wall Swtch, 1-Pole, 120/277V, 20A

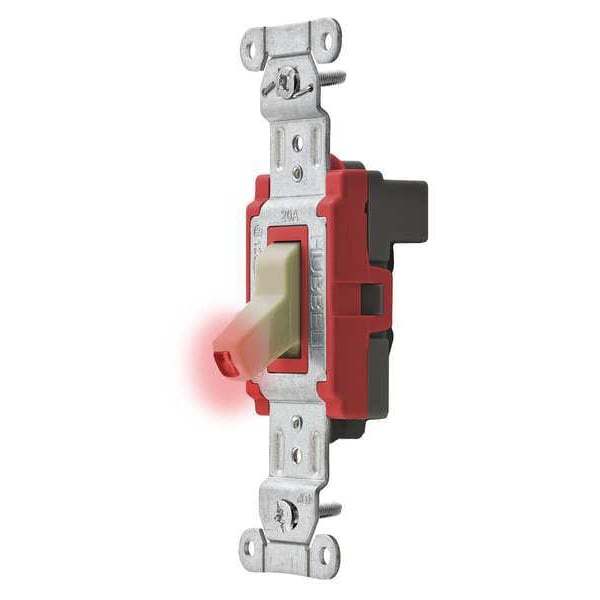

Hubbell Wiring Device-Kellems Pilot Lit Wall Swtch, 1-Pole, 120/277V, 20A SNAP1221PLI - main

Pilot Lit Wall Swtch, 1-Pole, 120/277V, 20A

  • Mfr # SNAP1221PLI

  • Zoro # G4612781

product price: $22.93
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1221PLI
Zoro #
G4612781
UPC #
783585189390
Country of Origin
United States

Dimensions

Overall Width
1.3 in
Overall Height
1.7 in
Width
1.3 in
Length
4.18 in
Height
1.74 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Pilot Light Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Antimicrobial
No
Rated HP
1 to 2
Description/Special Features
Light On with Load On
Standards
UL Listed
Pilot Light
Yes
Market
Industrial
Wire Connection Type
Modular Wiring
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
2 hp
Voltage Rating
120/277V AC
Resistance Properties
Impact Resistant
Number of Switches
1
Housing Material
Thermoplastic
Current Rating
20 A
Minimum Operating Temperature
-40 Degrees F
Type
Toggle
Style
Single Pole
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Base Material
Thermoplastic, Black
Toggle Color
Ivory
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Continuous Current
20A
Toggle Material
Thermoplastic
Overload
Minimum 4.8 times rated current for 100 cycles
Top Material
Thermoplastic, Red
Terminals
Brass
Terminal Accommodations
Uses SNAPConnect Connector
Flammability
UL 94V-2
Temperature Rise
30°C maximum at rated current
Contacts
Silver Alloy
Max. Working Voltage
277V AC
Amperage Rating
20 A
Temperature Rise - Max.
30°C maximum at rated current
Number Of Poles
Single Pole
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Industry Standard(s)
UL Listed
Indicator(s) Type
Red LED
Current / Amperage Rating
20 A
Indicator
Light On with Load On
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Voltage Rating Description
120-277 VAC
Series
Pilot Light
Material
Thermoplastic
Item Type
Single Pole Pilot Toggle Switch

Description

Pilot Light Wall Switch, Color Ivory, Current Rating 20 A, Pilot Light Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
