Shop HUBBELL WIRING DEVICE-KELLEMS

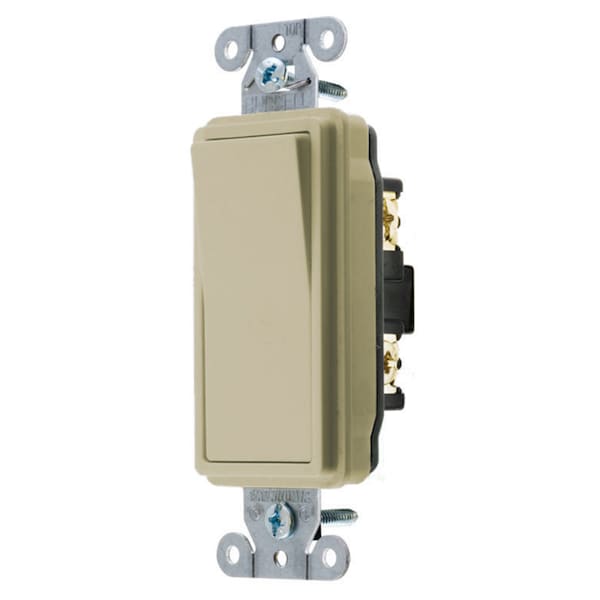

Switches and Lighting Control, Decorator Switch, Specification Grade, Four Way, 20A 120/277V AC, Back and Side Wired, Ivory

  • Mfr # DS420I
  • Zoro # G400701658
product price:
$
74.15
/ea

Key Features

Switch Type
Four Way
Color
Ivory
Voltage
120/277V AC
Type
Rocker/Decorator
Length
4.28 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DS420I
Zoro #
G400701658
UPC #
783585108421
Country of Origin
China

Dimensions

Length
4.28 in
Height
1.67 in
Width
1.73 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.28 in x 1.73 in x 1.67 in

Details

Item
Four Way Style Line Decorator Switch
Switch Type
Four Way
Color
Ivory
Voltage
120/277V AC
Type
Rocker/Decorator
Style
Four Way
Voltage Rating
120-277 VAC
Action
DPDT
Carton Quantity
10
Series
General Purpose
Number Of Poles
Double Pole
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Temp. Rise
30°C maximum at rated current
Amperage
20 A
Current Rating
20 A
Connectivity
Back and Side Wired
Material
Thermoplastic
Wiring Style
Back and Side Wired
Product Type
Toggle-switches
Max. Continuous Current
20A
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Overload
Minimum 4.8 times rated current for 100 cycles
Temperature Rise
30°C maximum at rated current
Rocker Color
Ivory
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Switch Handle Positions
2
Max. Working Voltage
277V AC
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Switch Grade
Decorator Series
Listing and Certifications
UL Listed and CSA Certified
Flammability
UL 94V-2
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Industry Standard(s)
UL Listed
Item Type
Four Way Style Line Decorator Switch
Temperature Rise - Max.
30°C maximum at rated current
Current / Amperage Rating
20 A
Amperage Rating
20 A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Control, DecoratorSwitch, Specification Grade, Four Way, 20A 120/277V AC, Back and SideWired, Ivory
