  6. Pin & Sleeve Plug, 101 A, 600V AC, Single Phase, 3 Pole, Style 2 Grounding, Black, Gray, NEMA 4X

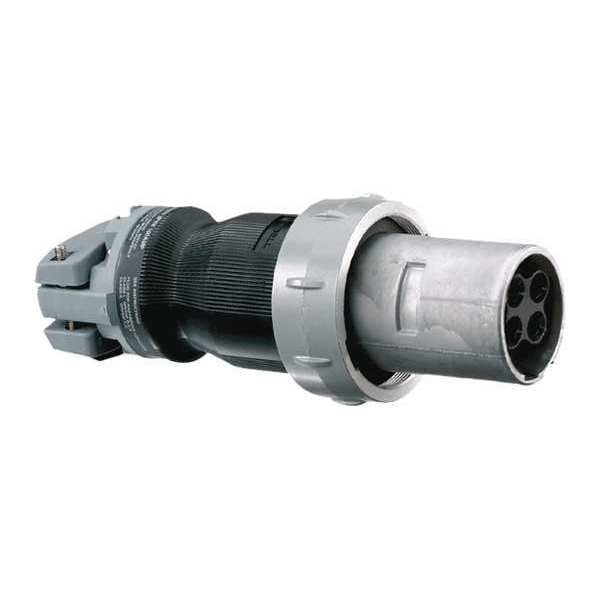

Hubbell Wiring Device-Kellems Pin & Sleeve Plug, 101 A, 600V AC, Single Phase, 3 Pole, Style 2 Grounding, Black, Gray, NEMA 4X HBL4100PS2WR - main

Pin & Sleeve Plug, 101 A, 600V AC, Single Phase, 3 Pole, Style 2 Grounding, Black, Gray, NEMA 4X

  • Mfr # HBL4100PS2WR

  • Zoro # G0574981

product price:  $731.70
/ea
Free Shipping & Returns

Key Features

Voltage Rating
600V AC
Phase
Single
Number of Poles
3
Number of Wires
4
IP Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL4100PS2WR
Zoro #
G0574981
UPC #
783585012254
Country of Origin
United States

Dimensions

Overall Length
12.63 in
Outside Diameter
4.92 in
For Minimum Cable Diameter
0.925 in
Maximum Wire Size
2 AWG
For Maximum Cable Diameter
1.94 in
Minimum Wire Size
4 AWG

Details

Item
Pin & Sleeve Plug
Current Rating
101 A
Voltage Rating
600V AC
Phase
Single
Number of Poles
3
Number of Wires
4
IP Rating
Not Rated
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Black, Gray
Cap Type
No Cap or Cover
Standards
CSA C22.2 No. 159, CSA Certified, UL 1010, UL 1682, UL 50, UL Listed
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Grounding Style
Style 2
Switch Rated
No
Features
All-Brass Sleeve Contacts Provide Reliable Electrical Contact, Catalog Number and Rating Visible While in Use, Locking Ring Provides UL Type 4X Watertight, Dust-Tight Seal
Housing Material
Non-Metallic
Reverse Service
Yes
Shrouded
Yes
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
4X
Power Indicating Light
No
Pin Material
Brass
Market
Industrial
Mounting Box
Stainless Steel (300 Series)
Hub Style
Reversed

Description

The HUBBELL 4100PS2WR Pin & Sleeve Plug is an electrical connector intended for use in environments where moisture and impact resistance are required. This plug features a non-metallic housing with metallic shrouding, providing durability while reducing the risk of electrical shock. It accommodates wire sizes from 4 AWG to 2 AWG and supports up to 101 amps at 600V AC, making it suitable for high-capacity single-phase power connections.


Key Features of the HUBBELL 4100PS2WR Pin & Sleeve Plug:

  • Current/Voltage Rating: Rated for 101 A at 600V AC, single phase

  • Wire Accommodation: Accepts wire sizes from 4 AWG (minimum) to 2 AWG (maximum)

  • Housing Material: Non-metallic construction with metallic shrouding; constructed with materials rated as impact resistant and moisture resistant

  • NEMA Enclosure Rating: Type 4X; includes locking ring

  • Sleeve Contacts: All-brass sleeve contacts ensure reliable electrical connection

  • Grounding Style: Grounded, Style 2 configuration

  • Cable Diameter Range: Suitable for cables between 0.925 in and 1.94 in diameter

  • Temperature Range: Operates between -40°C and +75°C

  • Pole/Wire Configuration: Three poles, four wires; straight connection orientation; reversed hub style; shrouded design

  • Standards Compliance: CSA C22.2 No.159, CSA Certified, UL Listed (UL1010, UL1682), UL50 compliant
