  6. Pin & Sleeve Receptacle, 60/63 A, 240V AC, Single Phase, 2 Pole, IEC Grounding, Blue, NEMA 4X

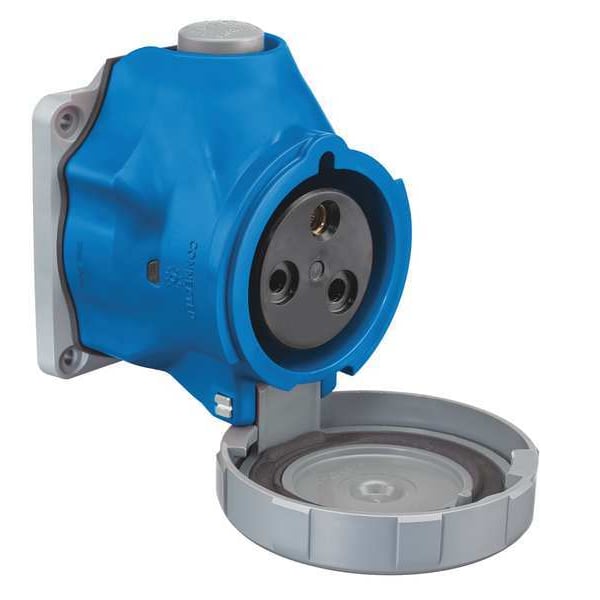

Hubbell Wiring Device-Kellems Pin & Sleeve Receptacle, 60/63 A, 240V AC, Single Phase, 2 Pole, IEC Grounding, Blue, NEMA 4X HBLS360R6W - main

Pin & Sleeve Receptacle, 60/63 A, 240V AC, Single Phase, 2 Pole, IEC Grounding, Blue, NEMA 4X

  • Mfr # HBLS360R6W

  • Zoro # G0977203

product price:  $772.20
/ea
Free Shipping & Returns

Key Features

Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP69K
NEMA Enclosure Rating
4X
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBLS360R6W
Zoro #
G0977203
UPC #
783585478548
Country of Origin
United States

Dimensions

Minimum Wire Size
8 AWG
Maximum Wire Size
2 AWG
Face Diameter
3.88 in

Details

Item
Pin & Sleeve Receptacle
Current Rating
60/63 A
Voltage Rating
240V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, File E146033, UL IEC 60309-1 IEC 60309-2, UL Listed
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant
Features
Approved as a Disconnecting Means for Motor Circuits and Branch Circuits, Mates with Existing Installed Base of IEC 60309-2 Pin and Sleeve Devices, Unswitched Ground
Body Material - Pin and Sleeve
Valox 357
Power Indication
Yes
HP
7 1/2 hp
Switch Rated
Yes
Grounding Style
IEC
Body Material
Valox 357
Flange Type
Flanged
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
7 1/2 hp
Reverse Service
No
Market
Industrial
Connection Orientation
Straight
Housing Material Grade
Valox 357
Maximum Operating Temperature
75 Degrees C
Shrouded
Yes
Power Indicating Light
Yes
Number of Gangs
1
Housing Material
Polybutylene Terephthalate
Product Type
Receptacle
Style
IP69k NEMA 4X
Series
Advantage Switch-Rated

Description

AdvantageTM Series Pin and Sleeve Switch-Rated - Hubbell Wiring Device-Kellems AdvantageTM Series Pin and Sleeve SwitchRated Devices are IEC 60309-2 compatible devices that are approved as a disconnecting means for motor and branch circuits. Compact design, this device is similar in size to standard IEC 60309-2 devices. Robust and durable housing, UV-stabilized, impact and corrosion-resistant PBT housing is designed to withstand harsh industrial environments. Stainless steel hardware provides superior corrosion resistance in wet and harsh environments Receptacles mount to standard Hubbell IEC Pin and Sleeve back boxes. The AdvantageTM Series has a UL witnessed IP69k and 4X,12 environmental rating, two power-indicating LEDs, continuous ground engagement, labelless laser markings and a compact and ergonomic design. Hubbell’s Pin and Sleeve connections have always been safe – that hasn’t changed. The AdvantageTM series simply has more... Advantages.
•
