  9. Receptacle, 3R, 4X, 12K, Stud, Black, Series: 16

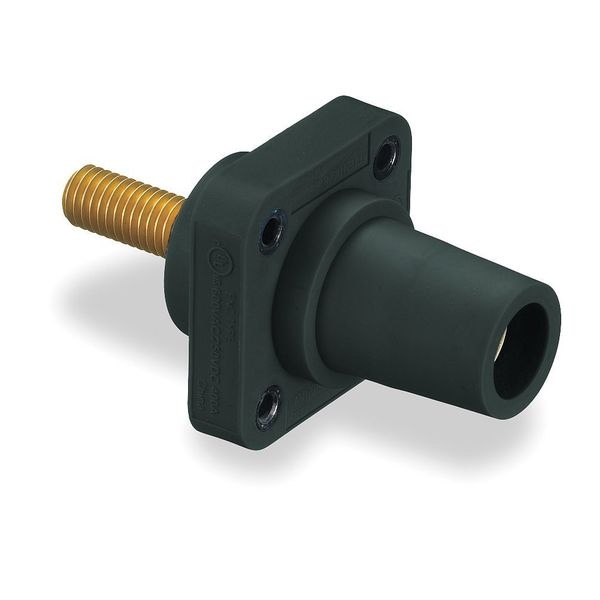

Hubbell Wiring Device-Kellems Receptacle, 3R, 4X, 12K, Stud, Black, Series: 16 HBLFRSBK - main

Receptacle, 3R, 4X, 12K, Stud, Black, Series: 16

  • Mfr # HBLFRSBK

  • Zoro # G2825331

product price: $48.26
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Female
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLFRSBK
Zoro #
G2825331
UPC #
783585112657
Country of Origin
China

Dimensions

Overall Width
2.2 in
Overall Length
4.1 in
Maximum Wire Size
4/0 AWG
Minimum Wire Size
4 AWG
Wire Size
#4 AWG to #4/0 AWG
Display Size
Standard Sized Product

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12K, 3R, 4X
Amps AC/DC
400AC/DC
Material
Thermoplastic Elastomer
Mounting
Panel
Single Pole Device Style
Taper Nose
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Conductor Material
Brass
Color
Black
Amps AC
400 A
NEMA Enclosure Rating
12, 3R, 4X
Phase
Single
Contact Material
Brass
End Type
Taper Nose
Compatible with Series
16
Mounting Style
Through Hole Mounting
Terminal Connection Type
Threaded Stud
UL 94 Flammability Rating
HB
Gender
Female
Connection Orientation
Straight
Housing Material
Thermoplastic Elastomer
For Location
Indoor
Flange Shape
Square
Housing Color
Black
Style
Stud Type, Through Hole Mounting, Female
Application
High Ampacity Connections
Connectivity
Stud Type
Current / Amperage Rating
400 A
Number Of Wires
1-Wire
Voltage Rating Description
600V AC/DC
Material - Mounting Hardware
Threaded Thru-Hole
Number Of Poles
1-Pole
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Amperage Rating
400 A
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wattage
240000
OEM Brand Name
Hubbell Wiring Device-Kellems
Item Type
Panel Mount Receptacle

Description

The HUBBELL Series 16 Panel Mount Receptacle is a single pole, female device rated for operation up to 400A and rated for 600V AC or 250V DC. It features a stud-type, threaded terminal connection and is intended for indoor installations where additional protection may be required. The receptacle is constructed with a thermoplastic elastomer housing and brass contacts.


Key Features of the HUBBELL Series 16 Panel Mount Receptacle:

  • Amperage Rating: Rated up to 400A (AC or DC)

  • Voltage Rating: Rated up to 600V AC or 250V DC

  • Connection Type: Threaded stud terminal with straight orientation; panel mount style

  • Compatible Wire Size: Accepts wire sizes from #4 AWG to 4/0 AWG

  • Contact Material: Brass contacts

  • Housing Material: Thermoplastic elastomer housing

  • NEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12K requirements for specific protected locations

  • Standards Compliance: Listed under ANSI/NFPA 70 (NEC), UL/cUL standards, UL94 HB flammability rating
