  9. Receptacle, 4-4/0, Male, Org, Stud, Taper

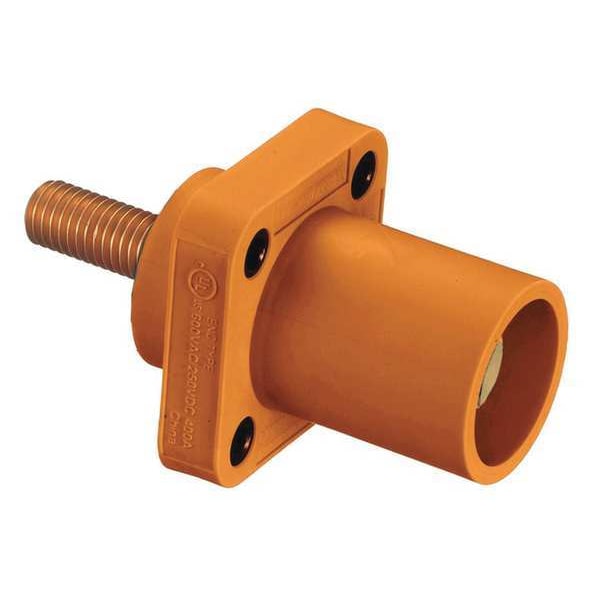

Hubbell Wiring Device-Kellems Receptacle, 4-4/0, Male, Org, Stud, Taper HBLMRSO - main

Receptacle, 4-4/0, Male, Org, Stud, Taper

  • Mfr # HBLMRSO

  • Zoro # G6172695

product price: $48.15
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Male
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLMRSO
Zoro #
G6172695
UPC #
783585003306
Country of Origin
China

Dimensions

Power Terminals Wire Size
#4 to 4/0
Maximum Wire Size
4/0 AWG
Overall Width
2.2 in
Overall Length
4.15 in
Minimum Wire Size
4 AWG
Wire Size
#4 AWG to #4/0 AWG
Display Size
Standard Sized Product

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Amps AC/DC
300/400AC/DC
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Mounting
Threaded Stud
Cable Range
4 to 4/0
Color
Orange
Conductor Material
Brass
Material
Thermoplastic Elastomer
Single Pole Device Style
Taper Nose
Fits
UL1691
Amps AC
400 A
Terminal Connection Type
Threaded Stud
Connection Orientation
Straight
Compatible with Series
16
Housing Color
Orange
Flange Shape
Square
For Location
Indoor
Includes Mounting Hardware
Yes
Phase
Single
Gender
Male
End Type
Taper Nose
NEMA Enclosure Rating
12, 3R, 4X
Mounting Style
Through Hole Mounting
Housing Material
Thermoplastic Elastomer
Contact Material
Brass
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Connectivity
Screw Terminals
Voltage Rating Description
600V AC/DC
Item Type
Flanged Single
Application
High Ampacity Connections
Current / Amperage Rating
400 A
Amperage Rating
400 A
Style
Stud Type, Through Hole Mounting, Male
Wattage
240000
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number Of Poles
1-Pole
Material - Mounting Hardware
Screw Mounting

Description

The HUBBELL Series 16 Male Receptacle is a single pole device rated for use in temporary power distribution systems requiring high ampacity electrical connections. This receptacle features a straight, taper nose design with threaded stud terminals and accommodates wire sizes from #4 AWG to 4/0 AWG. It is constructed with a thermoplastic elastomer housing and brass contacts, intended for use in indoor dry locations; additional protection may be required for other environments.


Key Features of the HUBBELL Series 16 Male Receptacle:

  • Amperage Rating: Rated for up to 400 A (300/400A AC/DC)

  • Voltage Rating: Supports up to 600V AC or 250V DC

  • Cable Range: Accepts wire sizes from #4 AWG to 4/0 AWG

  • Terminal Connection Type: Threaded stud connection with screw terminals

  • Material Construction: Brass conductor/contact; thermoplastic elastomer housing

  • NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements

  • Standards Compliance: Listed under ANSI/NFPA 70, NEC, UL/cUL standards including UL1691 compatibility

  • Mounting Style: Through hole mounting with included hardware; flange shape is square

  • Device Orientation & Gender: Straight orientation; male configuration; single pole style (taper nose)
