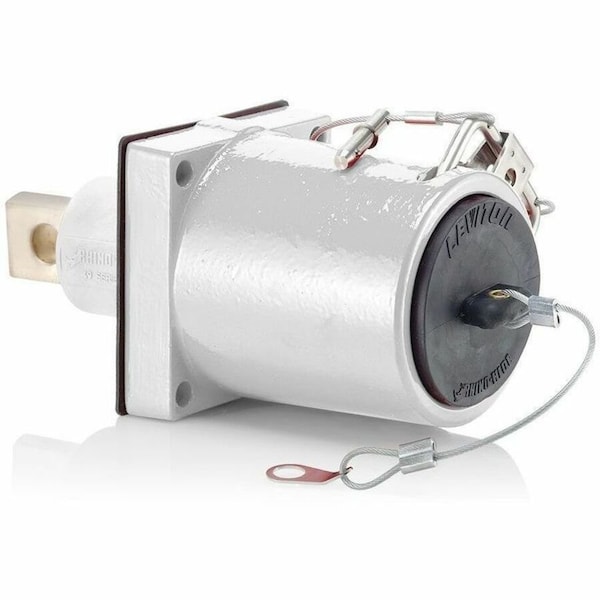

Plugs and Receptacles
Mfr # 49FR1-XW
Zoro # G222587911
product price:Â $1,143.99
/ea
Free Shipping & Returns
Key Features
Housing Material
Thermoplastic Elastomer
Minimum Operating Temperature
-76 Degrees F
Connection Orientation
Straight
Voltage Rating
1000V AC, 1000V DC
Overall Width
4.49 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 49FR1-XW
- Zoro #
- G222587911
- UPC #
- 78477386538
- Country of Origin
- Mexico
Dimensions
- Overall Width
- 4.49 in
- Flange Height
- 4.49 in
- Minimum Wire Size
- 313 kcmil
- Flange Width
- 4.49 in
- Overall Length
- 8.84 in
- Maximum Wire Size
- 777 kcmil
- Wire Rope Length
- 8.84 in
Details
- Housing Material
- Thermoplastic Elastomer
- Minimum Operating Temperature
- -76 Degrees F
- Connection Orientation
- Straight
- Voltage Rating
- 1000V AC, 1000V DC
- Terminal Connection Type
- One-Hole Bus Bar
- Maximum Operating Temperature
- 275 Degrees F
- Housing Color
- White
- Current Rating
- 1,135 A
- Standards
- UL Recognized
- Flange Shape
- Square
- Series
- 49
- NEMA Enclosure Rating
- 3R
- Item
- Single Pole Receptacle
- Gender
- Female
- End Type
- 45 Degrees Clevis Pin
- Resistance Properties
- Corrosion Resistant
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 1,135 A, Gender Female, Housing Color White, Housing Material Thermoplastic Elastomer, Maximum Wire Size 777 kcmil, Minimum Wire Size 313 kcmil, Voltage Rating 1000V AC, 1000V DC, End Type 45 Degrees Clevis Pin, Flange Height 4.49 in, Flange Shape Square, Flange Width 4.49 in, NEMA Enclosure Rating 3R, Standards UL Recognized, Terminal Connection Type One-Hole Bus Bar, Maximum Operating Temperature 275 Degrees F
