  9. Receptacle, Double Set, Red, Male

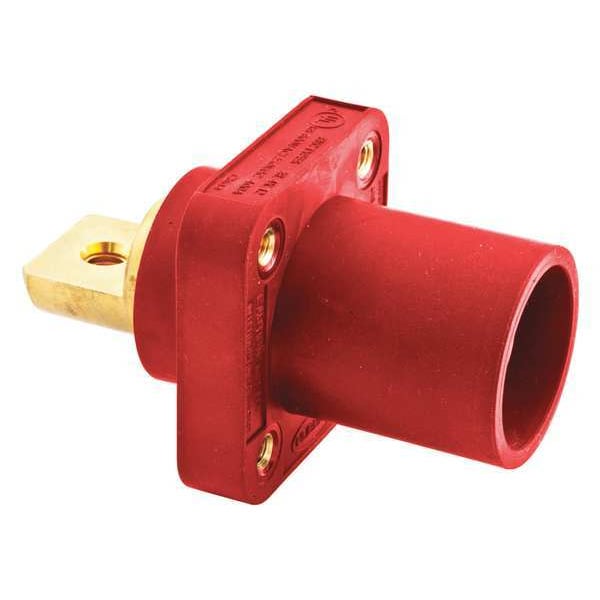

Hubbell Wiring Device-Kellems Receptacle, Double Set, Red, Male HBLMRBR - main

Receptacle, Double Set, Red, Male

  • Mfr # HBLMRBR

  • Zoro # G6227304

product price: $50.39
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLMRBR
Zoro #
G6227304
UPC #
783585192581
Country of Origin
China

Dimensions

Power Terminals Wire Size
#4 to 4/0
Minimum Wire Size
4 AWG
Overall Width
2.2 in
Maximum Wire Size
4/0 AWG
Overall Length
4.1 in
Display Size
Standard Sized Product
Wire Size
#4 AWG to #4/0 AWG

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Cable Range
4 to 4/0
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Conductor Material
Brass
Amps AC/DC
300/400AC/DC
Mounting
Threaded Hole
Single Pole Device Style
Taper Nose
Material
Thermoplastic Elastomer
Color
Red
Fits
UL1691
Amps AC
400 A
Includes Mounting Hardware
Yes
End Type
Taper Nose
Contact Material
Brass
Terminal Connection Type
Bus Bar
Gender
Male
Housing Material
Thermoplastic Elastomer
Housing Color
Red
Compatible with Series
16
Connection Orientation
Straight
Phase
Single
For Location
Indoor
Mounting Style
Threaded Mounting
NEMA Enclosure Rating
12, 3R, 4X
Flange Shape
Square
Application
High Ampacity Connections
Number Of Poles
1-Pole
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Style
Bus Bar Mount Male
Current / Amperage Rating
400 A
Amperage Rating
400 A
Voltage Rating Description
600V AC/DC
Material - Mounting Hardware
Screw Mounting
Connectivity
Screw Terminals
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Item Type
Flanged Single
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Wattage
240000

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Industrial Grade
• Male Bus Receptacle
• 300/400A 600V AC/DC
