  9. Receptacle, Double Set Screw, White

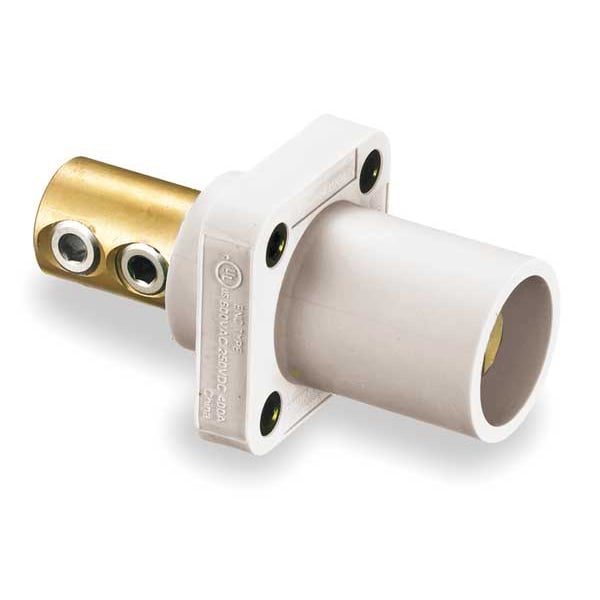

Hubbell Wiring Device-Kellems Receptacle, Double Set Screw, White HBLMRW - main

Receptacle, Double Set Screw, White

  • Mfr # HBLMRW

  • Zoro # G1833334

product price: $52.04
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLMRW
Zoro #
G1833334
UPC #
783585113074
Country of Origin
China

Dimensions

Maximum Wire Size
4/0 AWG
Minimum Wire Size
4 AWG
Overall Length
4.1 in
Overall Width
2.2 in
Display Size
Standard Sized Product
Wire Size
#4 AWG to #4/0 AWG

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12K, 3R, 4X
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Amps AC/DC
400AC/DC
Material
Thermoplastic Elastomer
Mounting
Panel
Color
White
Conductor Material
Brass
Cable Range
4 to 4/0
Single Pole Device Style
Taper Nose
Amps AC
400 A
Gender
Male
Includes Mounting Hardware
Yes
Mounting Style
Through Hole Mounting
End Type
Taper Nose
Contact Material
Brass
Phase
Single
Housing Material
Thermoplastic Elastomer
Connection Orientation
Straight
UL 94 Flammability Rating
HB
For Location
Indoor
Housing Color
White
Terminal Connection Type
Double Set Screw
Compatible with Series
16
Flange Shape
Square
NEMA Enclosure Rating
12, 3R, 4X
Material - Mounting Hardware
Screw Mounting
Number Of Poles
1-Pole
Connectivity
Screw Terminals
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Item Type
Flanged Single
Current / Amperage Rating
400 A
Application
High Ampacity Connections
Voltage Rating Description
600V AC/DC
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
240000
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Amperage Rating
400 A
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Style
Double Set Screw Male

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Industrial Grade
• Male
• Receptacle
