Plugs and Receptacles
Mfr # 16R32-XG
Zoro # G722587817
product price:Â
$
47.39
/ea
Key Features
Current Rating
400 A
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
185 Degrees F
Gender
Female
Housing Color
Green
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16R32-XG
- Zoro #
- G722587817
- UPC #
- 78477939222
- Country of Origin
- Mexico
Dimensions
- Flange Width
- 2.28 in
- Overall Length
- 2.07 in
- Overall Width
- 2.28 in
- Minimum Wire Size
- 2 AWG
- Flange Height
- 2.28 in
- Threaded Stud Termination Length
- 1.25 in
- Stud Thread Size
- 5/16"-18
- Maximum Wire Size
- 4/0 AWG
- Wire Rope Length
- 2.07 in
- Length
- 2.07 in
Description

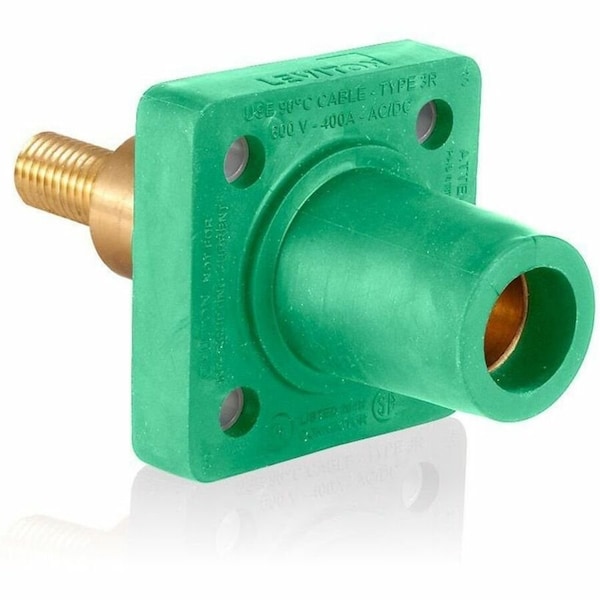

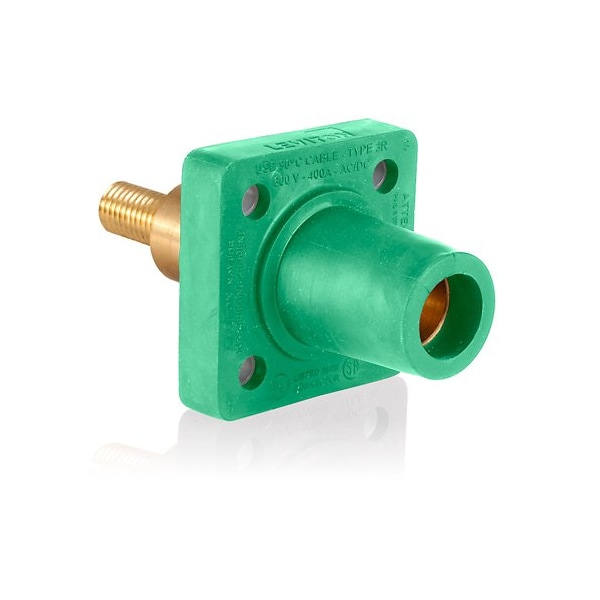

Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Female, Housing Color Green, Housing Material Nylon, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.28 in, Flange Shape Square, Flange Width 2.28 in, NEMA Enclosure Rating 3R, Standards UL/CSA 1691, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
