  9. Receptacle, Female, Green, 4-4/0, Taper

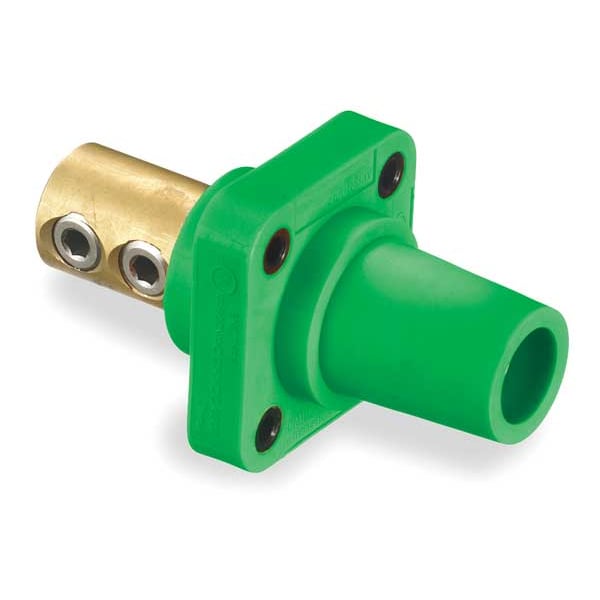

Hubbell Wiring Device-Kellems Receptacle, Female, Green, 4-4/0, Taper HBLFRGN - main

Receptacle, Female, Green, 4-4/0, Taper

  • Mfr # HBLFRGN

  • Zoro # G1702504

product price: $52.59
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLFRGN
Zoro #
G1702504
UPC #
783585112626
Country of Origin
China

Dimensions

Maximum Wire Size
4/0 AWG
Overall Length
4.1 in
Overall Width
2.2 in
Minimum Wire Size
4 AWG
Display Size
Standard Sized Product
Wire Size
#4 AWG to #4/0 AWG

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12K, 3R, 4X
Single Pole Device Style
Taper Nose
Mounting
Panel
Cable Range
4 to 4/0
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Color
Green
Amps AC/DC
400AC/DC
Conductor Material
Brass
Material
Thermoplastic Elastomer
Amps AC
400 A
Compatible with Series
16
Housing Material
Thermoplastic Elastomer
Phase
Single
For Location
Indoor
Housing Color
Green
Contact Material
Brass
UL 94 Flammability Rating
HB
Mounting Style
Through Hole Mounting
NEMA Enclosure Rating
12, 3R, 4X
End Type
Taper Nose
Gender
Female
Connection Orientation
Straight
Terminal Connection Type
Double Set Screw
Flange Shape
Square
Amperage Rating
400 A
Wattage
240000
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number Of Wires
1-Wire
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Voltage Rating Description
600V AC/DC
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
High Ampacity Connections
Current / Amperage Rating
400 A
Material - Mounting Hardware
Threaded Thru-Hole
Number Of Poles
1-Pole
Item Type
Panel Mount Receptacle
Connectivity
Double Set Screw
Style
Female Double Set Screw
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Industrial Grade
• Female Receptacle
• 300/400A 600V AC/DC
