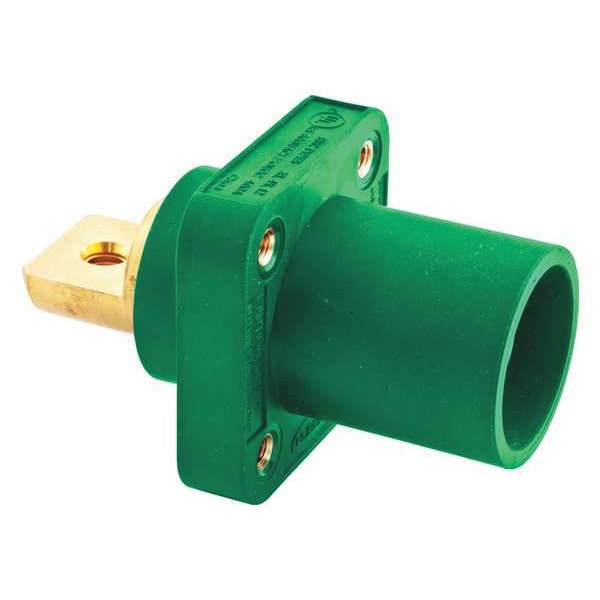

Receptacle, Grn, Male, Taper Nose, Ser 16

The HUBBELL Series 16 Single Pole Male Receptacle is rated for use in applications requiring up to 400A electrical connections, supporting up to 400A and rated for 600V AC or 250V DC. This straight connection device features a taper nose end type; mates with corresponding female connectors and is suitable for use with #4 AWG to 4/0 AWG wire sizes. The receptacle includes a thermoplastic elastomer housing and brass conductor contacts, compatible with bus bar mounting; intended for indoor use in dry conditions unless otherwise protected.

Key Features of the HUBBELL Series 16 Single Pole Male Receptacle:

• Amperage Rating: Rated for up to 400 A (300/400A AC/DC)


• Voltage Rating: Supports up to 600V AC / 250V DC


• Cable Range: Accepts wire sizes from #4 AWG to #4/0 AWG


• Connection Orientation: Straight with double set screw terminals


• End Type: Taper nose end type; mates with corresponding female connectors


• Mounting Style: Threaded hole mounting; includes screw hardware


• NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements


• Standards Compliance: UL Listed, cUL Listed; meets ANSI/NFPA70 (NEC), UL1691 standards


• Housing Material: Thermoplastic elastomer housing for durability in specified environments
