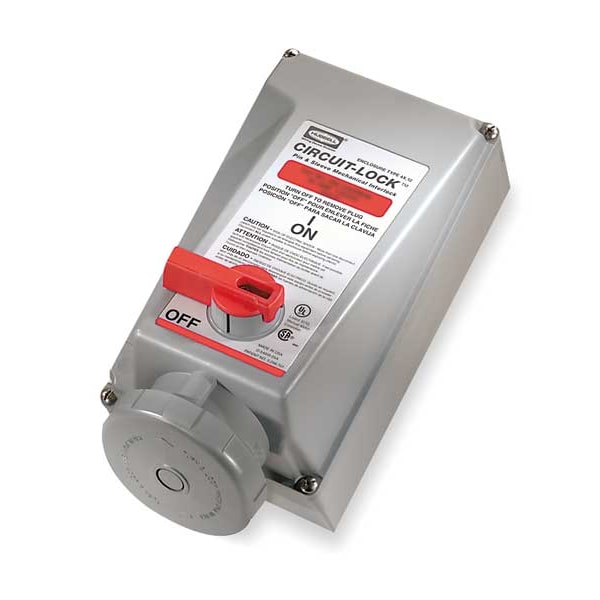

Hubbell Wiring Device-Kellems Receptacle, Interlock HBL460MI7W - main

Receptacle, Interlock

  • Mfr # HBL460MI7W

  • Zoro # G2318836

product price: $1,849.50
/ea
Free Shipping & Returns

Key Features

Type
Unfused, Pin and Sleeve
Voltage
480V AC
Amps
60 A
Number of Poles
3
Phase
Three
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL460MI7W
Zoro #
G2318836
UPC #
783585406053
Country of Origin
United States

Dimensions

Maximum Wire Size
2 AWG
Minimum Wire Size
8 AWG
Overall Height
10.12 in
Overall Width
7.75 in
Cord Size
10 to 2 AWG
Wire Size
#8 AWG to #2 AWG
Display Size
Standard Sized Product

Details

Item
Watertight Mechanical Interlock
Type
Unfused, Pin and Sleeve
Voltage
480V AC
Amps
60 A
Number of Poles
3
Phase
Three
Number of Wires
4
Viewing Window
No
Material
Thermoplastic
Fused / Nonfused
Nonfused
HP
30 hp
Includes
4
Accepts Plug Number
5Z917
Use With
5Z917
Standards
UL Listed
Color
Red
Fuse Protection
Non-Fused
UL 94 Flammability Rating
5VA, V-0
Compatible Plug Manufacturer Part Number
5Z917
NEMA Enclosure Rating
Not Rated
Horsepower Rating
30 hp
Locking Handle
Yes
Circuit Breaker Amp Rating
60 A
Housing Material
Thermoplastic
For Location
Indoor, Outdoor
Minimum Operating Temperature
-40 Degrees F
Circuit Breaker
No
Reverse Service
No
Electrical Connection Type
Pin and Sleeve
Maximum Operating Temperature
167 Degrees F
Resistance Properties
Watertight
Housing Color
Red
Includes Mounting Hardware
Yes
IP Rating
IP67
Voltage Rating
480V AC
Current Rating
60 A
Grounding
Grounded
NEMA Rating
4X, 12
UV Resistance
All Materials are UV Stabilized
Weight
8.45 lb
Gasket Material
Neoprene
Service
Standard
Max. Voltage
600V AC
Screw Material
300 Stainless Steel
Dielectric Strength
3000V AC
Flammability
UL 94 5VA, UL 94 V0
Operating Temp.
-40 to 75°C
Wattage
28800
Application
High Ampacity Watertight Connections
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Current / Amperage Rating
60 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 Classification Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown) Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids). Environmental - Operating Temperature - Max. Continuous +75°C Min. Continuous -40°C Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - External adjustable feet Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
Item Type
Mechanically Interlocked Single
Environmental Conditions
Watertight
Connectivity
Pressure Terminal Screws
Style
Standard Service
Voltage Rating Description
3 Phase 480 VAC
Amperage Rating
60 A
Series
Unfused Circuit-Lock
Industry Standard(s)
UL Listed

Description

The HUBBELL Receptacle Interlock is a rated for high ampacity electrical connections; suitable for specified indoor and outdoor use mechanical interlock designed for high ampacity electrical connections in demanding indoor and outdoor environments. This unfused, pin and sleeve device integrates a disconnect switch with the receptacle, includes a disconnect switch with the receptacle, compatible with lockout/tagout procedures supporting lockout/tagout procedures. It is rated for 60 A, 480V AC three-phase service, accepts compatible plug number 5Z917, and features a non-metallic thermoplastic housing; see specifications for environmental ratings suitable for harsh conditions.


Key Features of the HUBBELL Watertight Mechanical Interlock:

  • Amperage/Voltage Rating: Rated for 60 A at 480V AC (three-phase), can be used with motor loads up to 30 hp as specified by manufacturer ratings

  • Connection Type: Pin and sleeve configuration with pressure terminal screws; accommodates #8 AWG to #2 AWG wire sizes

  • Watertight Construction: IP67 ingress protection; NEMA Type 4X and Type 12 enclosure ratings provided

  • Housing Material: non-metallic thermoplastic housing; see specifications for environmental ratings

  • Locking Handle: Lockable handle is compatible with OSHA lockout/tagout practices

  • Circuit Interrupting Performance: Certified for current interrupting at full rated current/voltage; dielectric strength withstands up to 3000V AC

  • Mounting Hardware Included: Screw mounting hardware provided

  • Standards Compliance: UL Listed product meeting applicable industry standards
