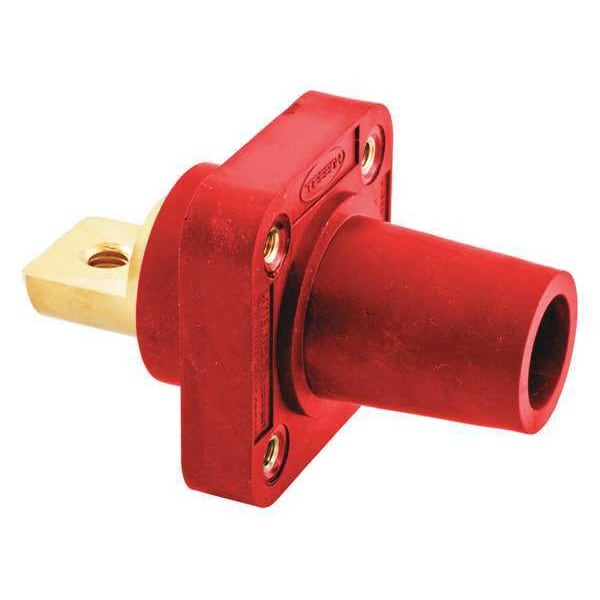

Receptacle, Taper Nose, 4-4/0, Female, Red
Mfr # HBLFRBR
Zoro # G6180255
Key Features
Specifications
Product Information
Dimensions
Description
The HUBBELL Receptacle, Taper Nose, 4-4/0, Female, Red is a single pole device rated for use in applications requiring up to 400 A (300/400A AC/DC) electrical connections. This female receptacle intended for commercial and industrial applications is compatible with Series 16 devices and accommodates wire sizes from #4 AWG to 4/0 AWG. It features a straight connection orientation and utilizes screw terminals for conductor attachment. The housing is constructed from thermoplastic elastomer and the contact material is brass.
Key Features of the HUBBELL Receptacle, Taper Nose, 4-4/0, Female:
- Amperage Rating: Rated for up to 400 A (300/400A AC/DC)
- Voltage Rating: Suitable for use at up to 600V AC or 250V DC
- Cable Range: Accepts conductor sizes from #4 AWG to 4/0 AWG
- Connection Type: Double set screw terminal connection; bus bar mount style
- NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements
- Standards Compliance: UL Listed; cUL Listed; ANSI/NFPA 70; National Electric Code (NEC)
- Mounting Style: Threaded mounting with included hardware
- Environmental Conditions: Intended for indoor dry locations; additional protection may be be required per installation environment
