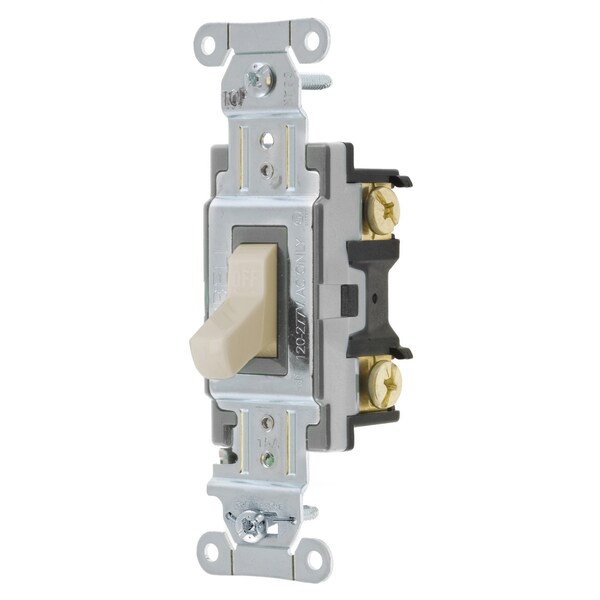

Hubbell Wiring Device-Kellems Specification Grade Commercial Switch CSB115LA - main

Specification Grade Commercial Switch

  • Mfr # CSB115LA

  • Zoro # G200701803

product price: $6.85
/ea
Sold in multiples of 2 for $13.70

Key Features

Switch Type
Single Pole
Color
Light Almond
Voltage
120/277V AC
Type
Toggle
Style
Single Pole
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CSB115LA
Zoro #
G200701803
UPC #
783585153810
Country of Origin
China

Dimensions

Dimensions
4.18 in x 1.49 in x 1.83 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Single Pole Commercial Toggle Switch
Switch Type
Single Pole
Color
Light Almond
Voltage
120/277V AC
Type
Toggle
Style
Single Pole
Carton Quantity
10
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage
15 A
Connectivity
Back and Side Wired
Series
General Purpose
Current Rating
15 A
Temp. Rise
30°C maximum at rated current
Voltage Rating
120-277 VAC
Number Of Poles
Single Pole
Product Type
Toggle-switches
Overload
Minimum 4.8 times rated current for 100 cycles
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise
30°C maximum at rated current
Switch Grade
Specification Grade
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Flammability
UL 94V-2
Max. Working Voltage
277V AC
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Switch Handle Positions
2
Toggle Color
Light Almond
Wiring Style
Back and Side Wired
Max. Continuous Current
15A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Single Pole, 15A 120/277V AC, Back and SideWired, Light Almond
