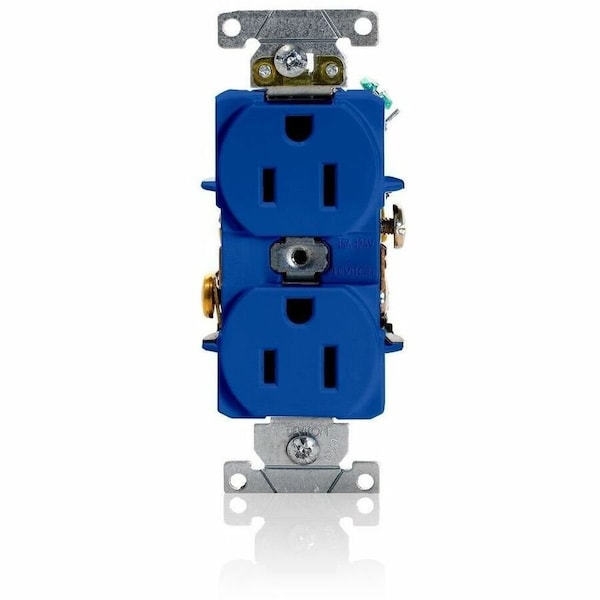

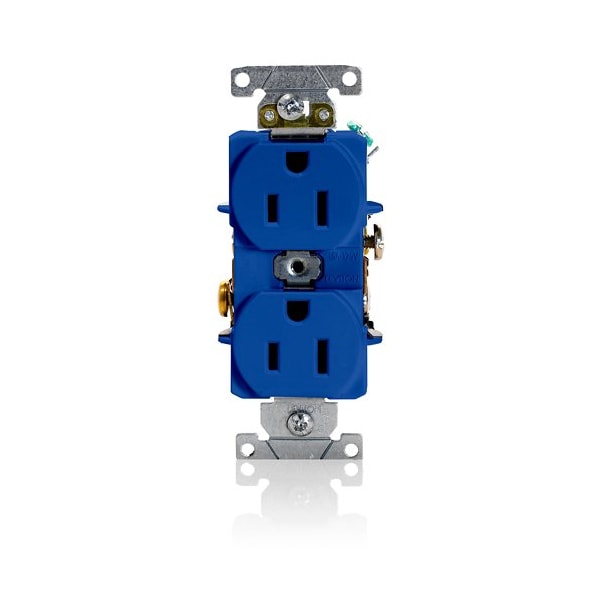

Duplex Receptacle/Outlet, 15 Amp
Mfr # 5252-BU
Zoro # G422982318
product price:Â
$
5.69
/ea
Key Features
UL 94 Flammability Rating
V-2
NEMA Receptacle Configuration
5-15R
Horsepower Rating
1/2 hp
Overall Depth
1.1 in
Face Plate Width
1.4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5252-BU
- Zoro #
- G422982318
- UPC #
- 078477851654
- Country of Origin
- Mexico
Dimensions
- Overall Depth
- 1.1 in
- Face Plate Width
- 1.4 in
- Maximum Wire Size
- 10 AWG
- Minimum Wire Size
- 14 AWG
- Face Plate Height
- 2.8 in
- Mount Hole Center-to-Center Height
- 3.3 in
Description
Duplex Receptacle/Outlet, 15 Amp, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Housing Color Blue, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1/2 hp, UL 94 Flammability Rating V-2
