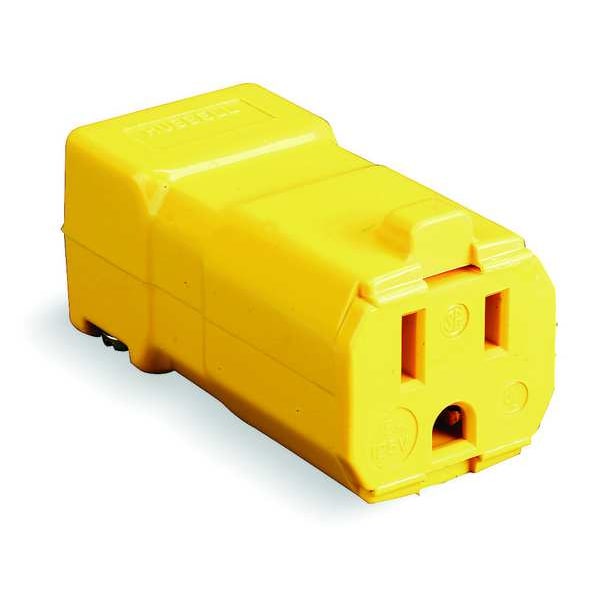

Hubbell Wiring Device-Kellems Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow HBL5969VY - main

Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow

  • Mfr # HBL5969VY

  • Zoro # G2948705

product price:  $26.59
/ea

Key Features

NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL5969VY
Zoro #
G2948705
UPC #
783585013107
Country of Origin
China

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.23 in
Cord Size
0.220 in to 0.660 in
Minimum Wire Size
18 AWG
Overall Length
2.68 in
Maximum Wire Size
12 AWG
Dimensions
2.68 in x 1.32 in x 2.68 in
Length
2.68 in
Wire Size
#18 AWG to #12 AWG
Width
1.32 in
Display Size
Standard
Height
2.68 in

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Cap Type
No Cap or Cover
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Dust Ignition Proof, Moisture Resistant, Weather Resistant
Grade
Commercial
Corrosion Resistant
No
Special Features
Moisture, Dust, and Weather Resistant
Material
Nylon
HP
1/2 hp
Antimicrobial
No
Voltage
125VAC
Power Indicator
No
Power Indicating Light
No
For Location
Indoor
Contact Material
Brass
Key Resistance Properties
Dust Ignition Proof / HUBBELL, Moisture Resistant / HUBBELL, Weather Resistant / HUBBELL
Housing Material
Thermoplastic Elastomer
Horsepower Rating
1/2 hp
Market
Commercial, Industrial
Polarized
Yes
Minimum Operating Temperature
-40 Degrees C
For Environment
Dry
Maximum Operating Temperature
75 Degrees C
Weight
0.1 lb
Dielectric Strength
Withstands 2,000V minimum.
Grade - Plugs and Receptacles
Commercial
NEMA Configuration
5-15
NEMA Plug Configuration - Plugs and Receptacles
5-15R
Series
Valise
Style
Standard
Cord Range
0.230"-0.720" (5.8-18.3)
Conductor Range
#14 AWG to #12 AWG
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Insulation
Insulated Body
Horsepower - Maximum
0.5
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-12 AWG. Standed copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Nema Rating
5-15R
Application
Industrial/Commercial
Material - Mounting Hardware
Cord Mounted
Temperature Rating
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact

Description

• Hinged one piece body design for easy assembly
• Powerful, offsetting cord grips clamp on individual conductors
• Assembly screws are captive and will not fall out while wiring
