- MFR #
- H320BL
- Zoro #
- G700702355
- UPC #
- 783585777047
- Country of Origin
- United States

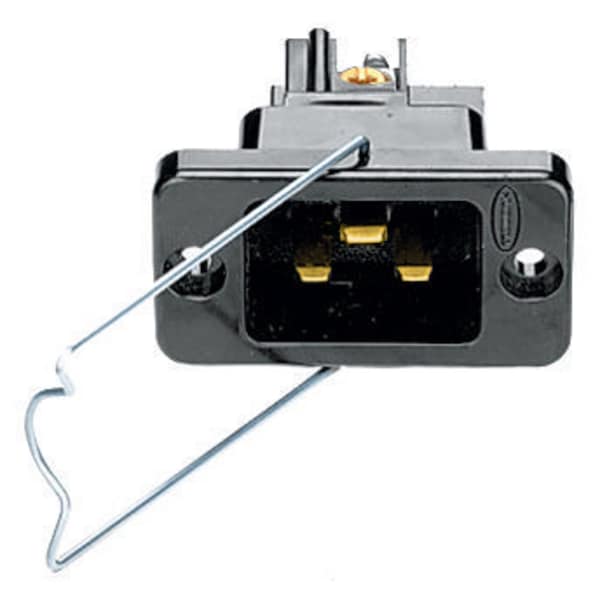

- Item
- Straight Blade Inlet
- NEMA Receptacle Configuration
- Non-NEMA
- Current Rating
- 20/16 A
- Voltage Rating
- 250V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Housing Color
- Black
- Standards
- CSA certified, UL Listed
- Resistance Properties
- Impact Resistant
- Material
- Nylon
- Application
- Heavy Duty Industrial
- IEC Product
- Locking Inlet
- Device Color
- Black
- Power Contacts Material
- .032" (.81) Brass
- Terminal Screw Material
- #6-32 Steel plated
- Base Material
- Impact Modified PBT
- Current Interrupting
- Certified for current interrupting at full rated current.
- Flammability
- UL 94 V2.
- Rating
- 16A 250V AC for European service; 20A 250V AC for North American service
- Dielectric Voltage
- Withstands 2,000V minimum
- Contact Blades Material
- .040" (1.0) Brass
- Operating Temperatures
- Maximum continuous 75°C; minimum -40°C (w/o impact)
- Ground Screw Material
- #6-32 Steel plated Multi-drive
- Housing Material
- Nylon-Black
- Retainer Material
- Nylon-Black
- Product Type
- Iec320-devices
- Terminal Identification
- Terminals identified in accordance with UL 498 and CSA
- Poles and Wires
- 2-pole + earth.
- Certification
- UL Listed 20A 250V AC-File No. E1706; CSA certified 20A 250V AC-File No. 17337; UL classified to IEC 320, 16A 250V AC-File No. E111246; TUV and VDE certified at 16A 250V AC-File No. 12469 1550 1002.
- Terminal Accommodation
- North American-#16AWG-#12AWG; International-1.5mm²-2.5mm².
- Standard
- IEC 320
- Temperature Rise
- Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
- Industry Standard(s)
- CSA certified 20A 250V AC-File No. 17337
TUV and VDE Certified
UL classified to IEC 320, 16A 250V AC-File No. E111246
UL Listed 20A 250V AC-File No. E1706
- Environmental Conditions
- Impact Resistant
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Material - Mounting Hardware
- Screw Mounting
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Insulation
- Insulated Body
- Performance
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Electrical - Rating - 16A 250V AC for European service
20A 250V AC for North American service
Environmental - Flammability - UL 94V-2
Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
Mechanical - Terminal Accommodation - North American to #16-12 AWG stranded or solid copper conductor only.
- Number Of Wires
- 3-Wire
- Wattage
- 7500 W
- Nema Rating
- Non-NEMA
- Dielectric Strength
- Withstands 2,000V minimum
