  11. Straight Blade Plug, 1-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Non-Grounded

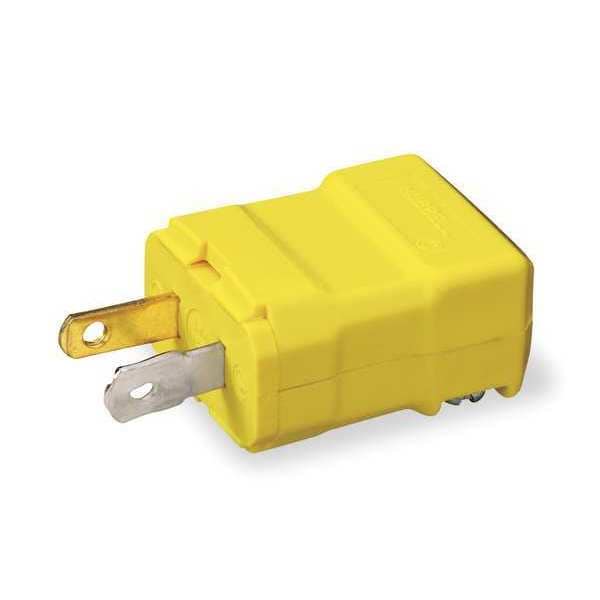

Hubbell Wiring Device-Kellems Straight Blade Plug, 1-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Non-Grounded HBL5866VY - main

Straight Blade Plug, 1-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Non-Grounded

  • Mfr # HBL5866VY

  • Zoro # G0395376

product price: $12.89
/ea

Key Features

NEMA Plug Configuration
1-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5866VY
Zoro #
G0395376
UPC #
783585013077
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.385 in
For Minimum Cable Diameter
0.218 in
Cord Size
0.218 in to 0.385 in
Minimum Wire Size
18 AWG
Maximum Wire Size
14 AWG
Body Length
1.68 in
Width
1.25 in
Height
0.88 in
Dimensions
1.68 in x 1.25 in x 0.88 in
Wire Size
#18 AWG to #14 AWG
Length
1.68 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
1-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
2
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Grounding
Non-Grounded
Housing Color
Yellow
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
Grade - Plugs and Receptacles
General
NEMA Configuration
1-15
Corrosion Resistant
Yes
Special Features
Corrosion resistant
HP
0.5
Phase - Plugs and Receptacles
1
Voltage
125VAC
Antimicrobial
No
NEMA Plug Configuration - Plugs and Receptacles
1-15P
Material
Nylon
Number of Wires
2
Grade
General
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Housing Material
Nylon
Insulation Material
Nylon
UL 94 Flammability Rating
HB
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1/2 hp
Market
Commercial, Industrial
Flammability
UL 94 HB or better.
Body Style
Straight
Dielectric Strength
Withstands 2,000V minimum
Enhancement
Polarized
Temp. Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Contact Blades Material
.060" (1.5) Brass
Cord Clamp Material
Noryl (Polyphenylene Oxide)
Operating Temp.
Maximum continuous 75°C; minimum -40°C (w/o impact)
Weight (Lbs.)
0.1
Terminal Screw Material
Steel (copper or nickel finish)
Style
Non-Grounding
Horsepower - Maximum
0.5
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Molded Rating on Device Face Mechanical - Terminal Accommodation - #18-#14 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Wattage
1875 W
Series
Valise
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact

Description

The HUBBELL 2 Wire Straight Blade Plug is a non-grounding, polarized plug rated for operation at 125V AC, up to 15 amps. It features a hinged one-piece nylon body with two captive multiple drive screws for secure installation. The plug accommodates cord sizes from 0.218 in to 0.385 in and is intended for use in commercial and industrial settings where a straight blade connection is specified.


Key Features of the HUBBELL 2 Wire Straight Blade Plug:

  • Amperage/Voltage Rating: Rated for 15 A at 125 V AC

  • NEMA Configuration: 1-15P, non-grounding, single phase

  • Body Design: Hinged one-piece nylon housing with screw terminals

  • Cord Accommodation: Accepts #18 AWG to #14 AWG stranded copper wire; cord clamp made from Noryl (Polyphenylene Oxide)

  • Polarization: Polarized blades provide specific electrical orientation

  • Corrosion Resistance: Constructed from materials identified as corrosion resistant

  • Dielectric Strength & Flammability: Withstands minimum of 2,000V; UL94 HB flammability rating

  • Operating Temperature Range: -40°F to +167°F (maximum continuous temperature of 75°C)

  • Standards Compliance: CSA Certified C22.2 No.42 File 280C, NEMA WD-6 Compliant, UL Listed to UL498 File E1706
