  11. Straight Blade Plug, 15-50P, 50 A, 250V AC, 3 Pole, Screw Terminals, Grounded

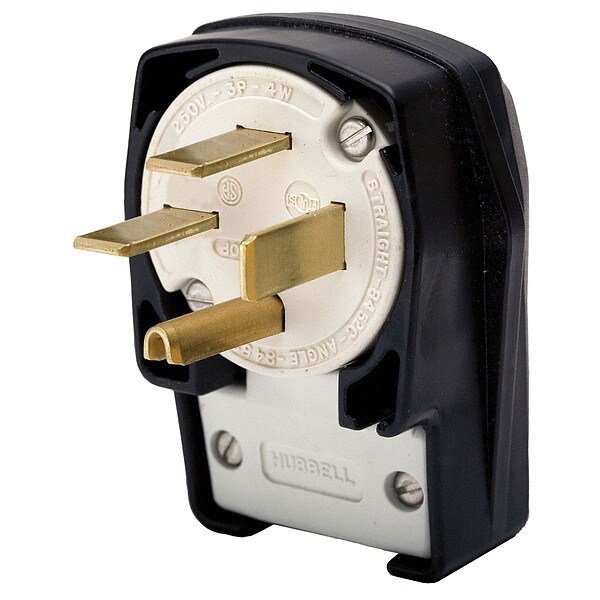

Hubbell Wiring Device-Kellems Straight Blade Plug, 15-50P, 50 A, 250V AC, 3 Pole, Screw Terminals, Grounded HBL8452C - main

Straight Blade Plug, 15-50P, 50 A, 250V AC, 3 Pole, Screw Terminals, Grounded

  • Mfr # HBL8452C

  • Zoro # G1246542

product price: $114.55
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
15-50P
Phase
Three
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8452C
Zoro #
G1246542
UPC #
783585015170
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.31 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 1.310 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
15-50P
Current Rating
50 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA, UL
Resistance Properties
Corrosion Resistant
Grade
Industrial
NEMA Plug Configuration - Plugs and Receptacles
15-50P
Material
Nylon
Grade - Plugs and Receptacles
Industrial
HP
7.5
Number of Wires
4
Corrosion Resistant
Yes
Special Features
Corrosion resistant
Voltage
250VAC
Antimicrobial
No
Phase - Plugs and Receptacles
3
Horsepower Rating
7 1/2 hp
Insulation Material
Nylon
Market
Industrial
Polarized
Yes
Housing Material
Nylon
Blade Holder Material
Glass Reinforced PET
Flammability
Receptacle: UL 94 V0. Plug: UL 94 HB (Housing), UL 94 V0 (Blade Holder and Retainer).
Ground Contact Blade Material
.075" Brass
Operating Temp.
Maximum continuous 75°C, minimum -40°C (w/o impact).
Box Terminals Material
Copper
Weight (Lbs.)
0.85
Ground Screw Material
3/8" Allen Head, Plated Steel
Terminal Screw Material
Steel - Zn plated
Dielectric Strength
Withstands 2,000V minimum
Retainer Material
Glass Reinforced PET
Cord Clamp Material
Glass Reinforced Polyester
Body Style
Angle
Contact Blades Material
.100" Brass
Temp. Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Angle Straight Blade Plug, Connection Orientation Angled, Current Rating 50 A, Grounding Grounded, Horsepower Rating 7 1/2 hp, Housing Color Black, IP Rating IP20, NEMA Plug Configuration 15-50P, Number of Blades 4, Number of Poles 3, Phase Three, Polarized Yes, Resistance Properties Corrosion Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.31 in, For Minimum Cable Diameter 0.625 in, Grade Industrial
