  11. Straight Blade Plug, 15-60P, 60 A, 250V AC, 3 Pole, Screw Terminals, Grounded

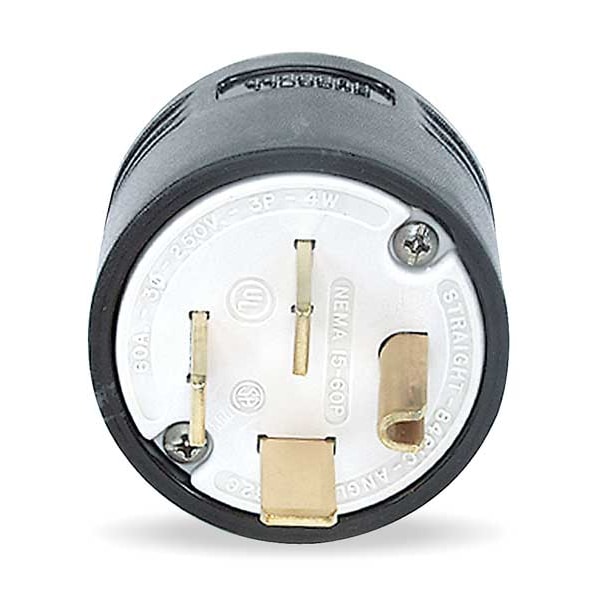

Hubbell Wiring Device-Kellems Straight Blade Plug, 15-60P, 60 A, 250V AC, 3 Pole, Screw Terminals, Grounded HBL8461C - main

Straight Blade Plug, 15-60P, 60 A, 250V AC, 3 Pole, Screw Terminals, Grounded

  • Mfr # HBL8461C

  • Zoro # G0596391

product price: $121.99
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
15-60P
Phase
Three
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8461C
Zoro #
G0596391
UPC #
783585015194
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.31 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 1.310 in
Body Length
4.13 in
Outside Diameter
2.88 in
Maximum Wire Size
4 AWG
Minimum Wire Size
12 AWG
Dimensions
4.13 in x 2.88 in x 2.88 in
Height
2.88 in
Length
4.13 in
Width
2.88 in
Wire Size
#12 AWG to #4 AWG

Details

Item
Straight Blade Plug
NEMA Plug Configuration
15-60P
Current Rating
60 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA, UL
Resistance Properties
Corrosion Resistant
Corrosion Resistant
Yes
Voltage
250VAC
Number of Wires
4
Special Features
Corrosion resistant
Antimicrobial
No
Phase - Plugs and Receptacles
3
Boot Code
C
Grade
Industrial
Grade - Plugs and Receptacles
Industrial
NEMA Plug Configuration - Plugs and Receptacles
15-60P
HP
10.0
Material
Nylon
Horsepower Rating
10 hp
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
UL 94 Flammability Rating
HB
Market
Commercial, Industrial
Polarized
Yes
Insulation Material
Nylon
Weight (Lbs.)
0.85
Cord Clamp Material
Glass Reinforced Polyester
Ground Screw Material
3/8" Allen Head, Plated Steel
Contact Blades Material
.100" Brass
Temp. Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Terminal Screw Material
Steel - Zn plated
Blade Holder Material
Glass Reinforced PET
Body Style
Straight
Retainer Material
Glass Reinforced PET
Box Terminals Material
Copper
Ground Contact Blade Material
.075" Brass
Flammability
UL 94 HB
Operating Temp.
Maximum continuous 75°C; minimum -40°C (w/o impact)
Dielectric Strength
Withstands 2,000V minimum
Industry Standard(s)
CSA Certified UL Listed File E1706
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Range
0.625"-1.310"
Horsepower - Maximum
10
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 60 A, Grounding Grounded, Horsepower Rating 10 hp, Housing Color Black, IP Rating IP20, NEMA Plug Configuration 15-60P, Number of Blades 4, Number of Poles 3, Phase Three, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating HB, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.31 in, For Minimum Cable Diameter 0.625 in
