  11. Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

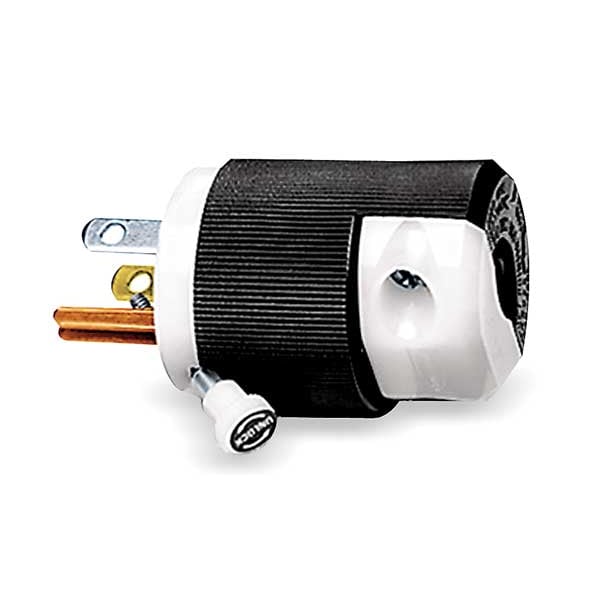

Hubbell Wiring Device-Kellems Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded HBL5280C - main

Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL5280C

  • Zoro # G2767965

product price: $33.99
/ea

Key Features

NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5280C
Zoro #
G2767965
UPC #
783585173658
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.23 in
Cord Size
0.230 in to 0.720 in
Outside Diameter
1.52 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Body Length
1.52 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Phase - Plugs and Receptacles
1
Special Features
Corrosion resistant
Grade - Plugs and Receptacles
Industrial
Corrosion Resistant
Yes
HP
0.5
Number of Wires
3
Voltage
125VAC
NEMA Plug Configuration - Plugs and Receptacles
5-15P
Material
Nylon
Grade
Industrial
Antimicrobial
No
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Insulation Material
Nylon
Horsepower Rating
1/2 hp
Housing Material
Polycarbonate
Polarized
Yes
Market
Commercial, Industrial
UL 94 Flammability Rating
HB
Cord Clamp Material
Nylon-Natural
Blade Holder Material
Nylon-Natural
Ground Contact Blade Material
.040" (1.0) Copper Alloy
Flammability
Rated HB or better UL94
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Enhancement
Anchor Lock
Contact Blades Material
.060" (1.5) Brass
Retainer Material
Polycarbonate-Clear
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Body Style
Straight
Operating Temp.
-40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact).
Blade Material
Solid Brass
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Environment
Dry
Dielectric Strength
Withstands 2000V per UL498
Body Material
Impact Modified Nylon
Weight (Lbs.)
0.15

Description

• Ribbed nylon housing is impact and chemical resistant
• VARI-SIZE adjustable cord clamp
• Fast lead assembly screws
• Beveled housing prevents snagging
