  11. Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded

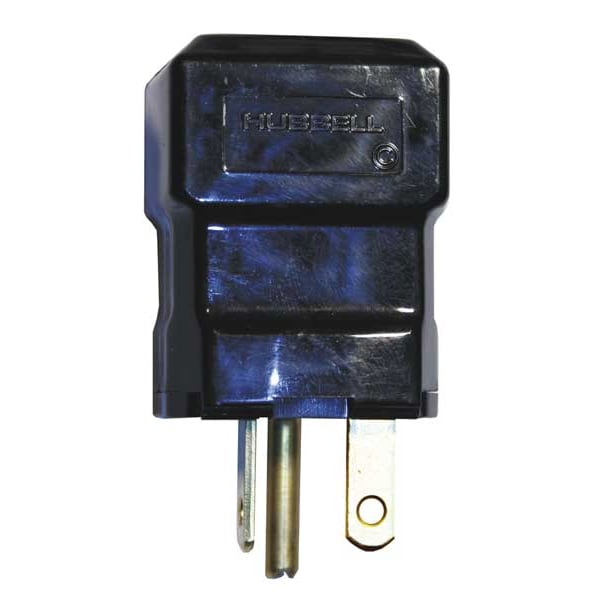

Hubbell Wiring Device-Kellems Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded HBL5364VBK - main

Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL5364VBK

  • Zoro # G2138927

product price: $19.89
/ea

Key Features

NEMA Plug Configuration
5-20P
Current Rating
20 A
Phase
Single
Number of Poles
2
Number of Blades
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5364VBK
Zoro #
G2138927
UPC #
783585019222
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.66 in
For Minimum Cable Diameter
0.22 in
Cord Size
0.220 in to 0.660 in
Minimum Wire Size
18 AWG
Maximum Wire Size
12 AWG
Wire Size
#18 AWG to #12 AWG

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
Phase - Plugs and Receptacles
1
Corrosion Resistant
Yes
Number of Wires
3
NEMA Plug Configuration - Plugs and Receptacles
5-20P
Antimicrobial
No
Voltage
125VAC
HP
1.0
Grade
Commercial
Material
Nylon
Grade - Plugs and Receptacles
Commercial
NEMA Configuration
5-20
Special Features
Corrosion resistant
NEMA Rating
WD-6; 5-20P
Horsepower Rating
1 hp
Housing Material
Polycarbonate
UL 94 Flammability Rating
HB
Maximum Operating Temperature
167 Degrees F
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Insulation Material
Nylon
Market
Commercial, Industrial
Body Style
Straight
Ground Contact Blade Material
.040" (1.0) Copper Alloy
Dielectric Strength
Withstands 2000V per UL498
Environment
Dry
Cord Clamp Material
Noryl (Polyphenylene Oxide)
Operating Temp.
-40°C to 60°C; Maximum continuous 75°C; minimum -40°C (w/o impact)
Ground Screw Material
Steel (green finish)
Body Material
Impact Modified Nylon
Contact Blades Material
.060" (1.5) Brass
Weight (Lbs.)
0.15
Blade Material
Solid Brass
Terminal Screw Material
Steel (copper or nickel finish)
Flammability
Rated HB or better UL94
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Performance
Electrical:Current Interrupting: Certified for current interrupting at full rated current Dielectric Voltage: Withstands 2,000V minimum Mechanical :Terminal Accommodation #18-#12 AWG stranded copper wire only Terminal Identification: Terminals identified in accordance with UL 498 and CSA Environmental :Flammability: UL 94 HB or better IP Suitability: IP20 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact)
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Application
Industrial/Commercial Grade
Horsepower - Maximum
1
Series
Valise
Material - Mounting Hardware
Cord Mounted
Style
Standard
Industry Standard(s)
CSA Certified to C22.2 No 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706

Description

The HUBBELL 3 Wire Commercial Straight Blade Plug is a plug rated for operation at 125V AC, up to 20 amps. It features a straight body style with a hinged, one-piece nylon housing.


Key Features of the HUBBELL 3 Wire Commercial Straight Blade Plug:

  • Amperage/Voltage Rating: Rated for 20A at 125V AC

  • NEMA Configuration: 5-20P (2 poles, 3 wires, grounded)

  • Body Material: Impact modified nylon with polycarbonate housing

  • Cord Clamp Material: Noryl (polyphenylene oxide) supports cord diameters from 0.22 in to 0.66 in

  • Connection Type: Screw terminals for wire connection compatible with #18–#12 AWG stranded copper wire

  • Corrosion Resistant: Constructed of materials specified by the manufacturer; see technical documentation for environmental suitability.

  • Dielectric Strength: Rated dielectric strength up to 2000V per UL498 standards

  • Operating Temperature Range: -40°C to +75°C continuous operation without impact

  • Flammability Rating: UL94 HB or better

  • Standards Compliance: CSA Certified C22.2 No.42; NEMA WD-6; UL Listed UL498 File E1706
