  11. Straight Blade Plug, 5-50P, 50 A, 125V AC, 2 Pole, Screw Terminals, Grounded

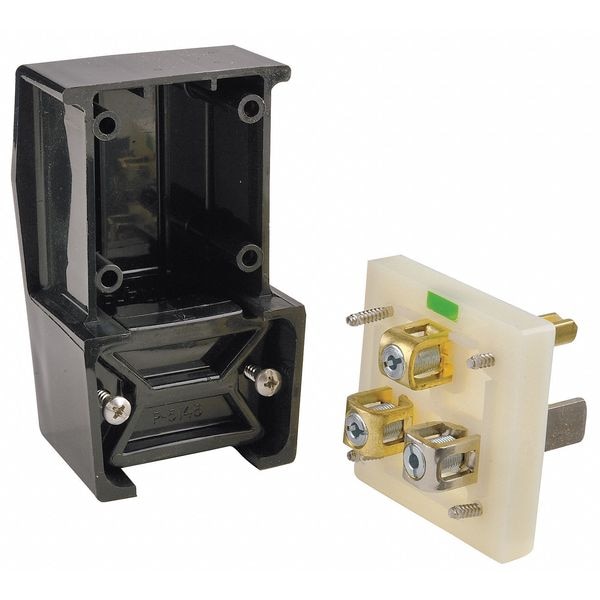

Hubbell Wiring Device-Kellems Straight Blade Plug, 5-50P, 50 A, 125V AC, 2 Pole, Screw Terminals, Grounded HBL9361 - main

Straight Blade Plug, 5-50P, 50 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL9361

  • Zoro # G0923063

product price: $91.06
/ea
Free Shipping & Returns

Key Features

Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL9361
Zoro #
G0923063
UPC #
783585015439
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.187 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 1.187 in
Body Length
4.34 in
Length
4.34 in
Width
2.75 in
Dimensions
4.34 in x 2.75 in x 1.88 in
Height
1.88 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-50P
Current Rating
50 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
Grade
Industrial
Antimicrobial
No
Phase - Plugs and Receptacles
1
HP
2.0
Corrosion Resistant
Yes
Number of Wires
3
NEMA Plug Configuration - Plugs and Receptacles
5-50P
Voltage
125VAC
Material
Nylon
Grade - Plugs and Receptacles
Industrial
Special Features
Corrosion resistant
Horsepower Rating
2 hp
Minimum Operating Temperature
-40 Degrees F
Insulation Material
Nylon
Housing Material
Nylon
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Market
Commercial, Industrial
Flammability
Receptacle: UL 94 V0. Plug: UL 94 HB (Housing), UL 94 V0 (Blade Holder and Retainer).
Body Style
Angle
Box Terminals Material
Brass
Temp. Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Dielectric Strength
Withstands 2,000V minimum
Weight (Lbs.)
0.55
Ground Screw Material
Plated Steel
Retainer Material
Reinforced Thermoplastic Polyester
Contact Blades Material
.060" Brass
Ground Contact Blade Material
.078" Brass (.078")
Cord Clamp Material
Reinforced Thermoplastic Polyester
Operating Temp.
Maximum continuous 75°C, minimum -40°C (w/o impact).
Blade Holder Material
Reinforced Thermoplastic Polyester
Terminal Screw Material
Steel - Zn plated
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
UL Listed To UL498 File E1706, CSA Certified To C22.2 No. 42 File 280
Cord Range
0.625"-1.187"
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
2

Description

Angle Straight Blade Plug, Connection Orientation Angled, Current Rating 50 A, Grounding Grounded, Horsepower Rating 2 hp, Housing Color Black, IP Rating IP20, NEMA Plug Configuration 5-50P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.187 in, For Minimum Cable Diameter 0.625 in, Grade Industrial
