  11. Straight Blade Receptacle, 15-20R, 20 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

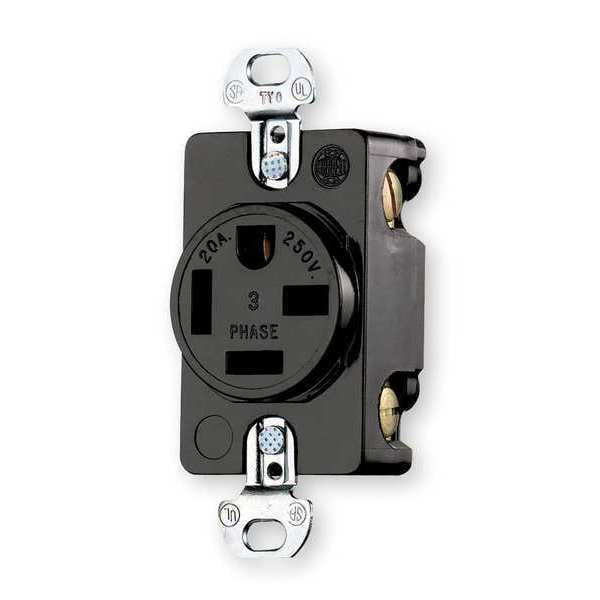

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 15-20R, 20 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded HBL8420 - main

Straight Blade Receptacle, 15-20R, 20 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

  • Mfr # HBL8420

  • Zoro # G1986275

product price: $43.29
/ea

Key Features

Receptacle Type
Single
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL8420
Zoro #
G1986275
UPC #
783585015880
Country of Origin
United States

Dimensions

Height
1.24 in
Width
1.5 in
Overall Depth
1.2 in
Face Plate Height
2.4 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.5 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Length
2.38 in
Dimensions
2.38 in x 1.5 in x 1.24 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
CSA C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Mounting Type
Flush
Weather Resistant - Plugs and Receptacles
No
Outlet Type
Single
HP
3 hp
Weather Resistant
No
Outlet Type - Plugs and Receptacles
Single
Voltage
250VAC
Application Environment
Industrial
Sub-Category
Single Receptacles
Corrosion Resistant
No
Number of Gangs
1
Power Indicator
No
Boot Code
A
Surge Suppression
No
Tamper Resistant
No
Mounting Type - Plugs and Receptacles
Flush
NEMA Configuration
15-20
NEMA Receptacle Configuration - Plugs and Receptacles
15-20R
Material
Nylon
Wiring Method - Plugs and Receptacles
Back and Side
Grade
Federal Specification
Polarized
Yes
Includes Mounting Hardware
Yes
Contact Material
Nickel-Plated Brass
Minimum Operating Temperature
-40 Degrees F
Cover Type
No Cover
UL 94 Flammability Rating
V-2
Surge Protection
No
Maximum Operating Temperature
167 Degrees F
NEMA Enclosure Rating
1
For Location
Indoor
Shrouded
No
Horsepower Rating
3 hp
GFCI
No
Includes
Mounting Hardware
Connection Orientation
Straight
AFCI
No
Market
Industrial
Housing Material
Nylon
Base Material
Reinforced PET
Device Color
Black
Receptacle Style
Single
Receptacle Grade
Heavy Duty Spec Grade
Mounting Screw Material
Steel-Zinc Plated
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Ground Screw Material
#8-32 Silicon Bronze (Green)
Standard
NEMA
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Dielectric Voltage
Withstands 2,000V minimum
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Certification
UL Listed, File E2186, Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Mounting Strap Material
.062" (1.5) Plated Steel
IP Suitability
IP20
Horsepower
3
Face Shape
Traditional
Current Interrupting
Certified for current interrupting at full rated current
Top Material
Nylon
Poles and Wires
3 Pole, 4 Wire Grounding
Power Contacts Material
.037" (.9) Brass - Ni Plated
Rating
20A, 3ph 250V
Face Style
Finder Groove
Flammability
UL 94 V0., UL 94 V-2
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Horsepower - Maximum
2 (1)
Material - Mounting Hardware
Screw Mounting
Nema Rating
15-20R
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Application
Heavy Duty
Dielectric Strength
Withstands 2,000V minimum
Wattage
5000 W
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 15-20R, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Polarized Yes, Receptacle Type Single, Standards CSA C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706, Voltage Rating 250V AC, Wire Connection Type Screw Terminals
