  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

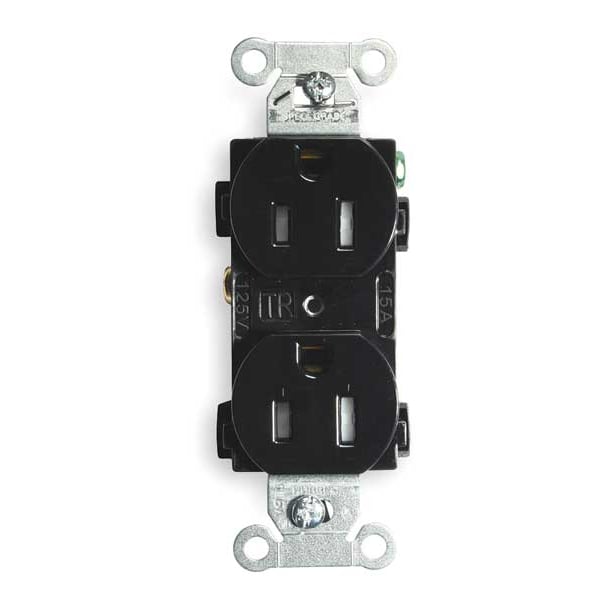

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR15BLKTR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR15BLKTR

  • Zoro # G3334712

product price: $8.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BR15BLKTR
Zoro #
G3334712
UPC #
783585144061
Country of Origin
China

Dimensions

Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.57 in x 1.15 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified, NEMA WD-1, NEMA WD-6, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Outlet Type
Duplex
Mounting Type
Flush
Number of Gangs
1
Sub-Category
Duplex Receptacles
HP
1/2 hp
Wiring Method - Plugs and Receptacles
Back and Side
Surge Suppression
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Power Indicator
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Material
Nylon
Weather Resistant - Plugs and Receptacles
No
Corrosion Resistant
No
NEMA Configuration
5-15
Tamper Resistant
Yes
Color
Black
Voltage
125VAC
Application Environment
Commercial
Brand
Hubbell Wiring Device-Kellems
Amperage
15 A
Style
Smooth Face
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Application
Commercial Specification Grade
Nema Rating
5-15R
Type
Standard Duplex
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Mounting Hardware Material
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
Connectivity
Back and Side Wired
Wattage
1875 W
Carton Quantity
10
Series
Commercial Specification Grade
Maximum Horsepower
0.5
Number Of Wires
3-Wire
Polarized
Yes
Horsepower Rating
1/2 hp
Market
Commercial, Industrial
NEMA Enclosure Rating
1
Surge Protection
No
UL 94 Flammability Rating
V-2
For Location
Indoor
Shrouded
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Maximum Operating Temperature
167 Degrees F
AFCI
No
Connection Orientation
Straight
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
Grade
Federal Specification
Includes Mounting Hardware
Yes
GFCI
No
Housing Material
Nylon
Contact Material
Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Auto Ground Clip Material
Stainless Steel
Horsepower
0.5
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Rating
15A, 125V
Poles and Wires
2 Pole, 3-Wire Grounding
Device Color
Black
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Base Material
Nylon
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Power Contacts Material
.030" (.8) Brass
Standard
NEMA
Receptacle Grade
Specification Grade Commercial Series, Tamper Resistant
Mounting Screw Material
Steel-Zinc Plated
Dielectric Voltage
Withstands 2,000V minimum
Receptacle Style
Duplex
Top Material
Nylon
Current Interrupting
Certified for current interrupting at full rated current
Face Shape
Traditional
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Flammability
UL 94 V2.
Mounting Strap Material
.040" (1) Steel (Galvanized)

Description

• Tamper-resistant shutter complies with national electrical code requirements
• Smooth face
• Wrap-around galvanized steel straps
• Triple wipe contacts
