  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

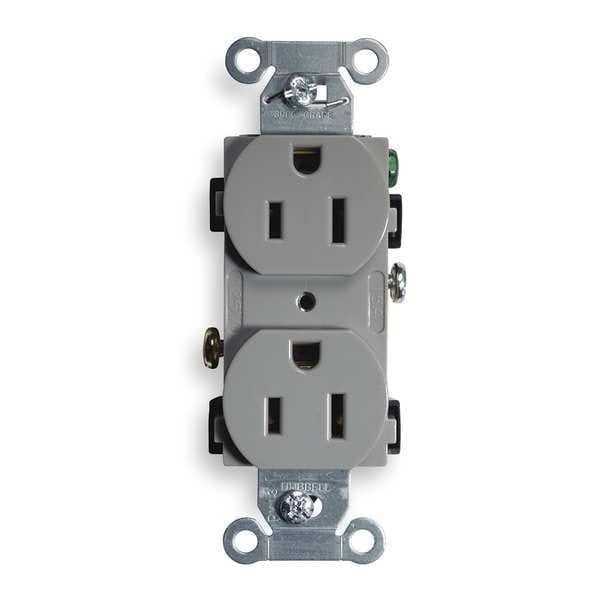

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR15GRY - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR15GRY

  • Zoro # G3108926

product price: $4.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR15GRY
Zoro #
G3108926
UPC #
783585127965
Country of Origin
China

Dimensions

Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Voltage
125VAC
Weather Resistant
No
Weather Resistant - Plugs and Receptacles
No
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Outlet Type
Duplex
Tamper Resistant
No
Application Environment
Commercial
Corrosion Resistant
No
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Material
Nylon
Number of Gangs
1
Sub-Category
Duplex Receptacles
NEMA Configuration
5-15
Outlet Type - Plugs and Receptacles
Standard Duplex
HP
1/2 hp
Type
Duplex
Grade
Federal Specification
Horsepower Rating
1/2 hp
Housing Material
Nylon
Surge Protection
No
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
Cover Type
No Cover
UL 94 Flammability Rating
V-2
Polarized
Yes
AFCI
No
Shrouded
No
Contact Material
Brass
NEMA Enclosure Rating
1
Includes Mounting Hardware
Yes
Market
Commercial, Industrial
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
GFCI
No
Dielectric Voltage
Withstands 2,000V minimum
Poles and Wires
2 Pole, 3-Wire Grounding
Power Contacts Material
.030" (.8) Brass
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Device Color
Gray
Top Material
Nylon
Mounting Strap Material
.040" (1) Steel (Galvanized)
Base Material
Nylon
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Rating
15A, 125V
Horsepower
0.5
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Standard
NEMA
Face Shape
Traditional
Flammability
UL 94 V2.
Mounting Screw Material
Steel-Zinc Plated
Current Interrupting
Certified for current interrupting at full rated current
Receptacle Grade
Specification Grade Commercial Series
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Auto Ground Clip Material
Stainless Steel
Receptacle Style
Duplex

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42, Federal Specification W-C-59, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
