  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

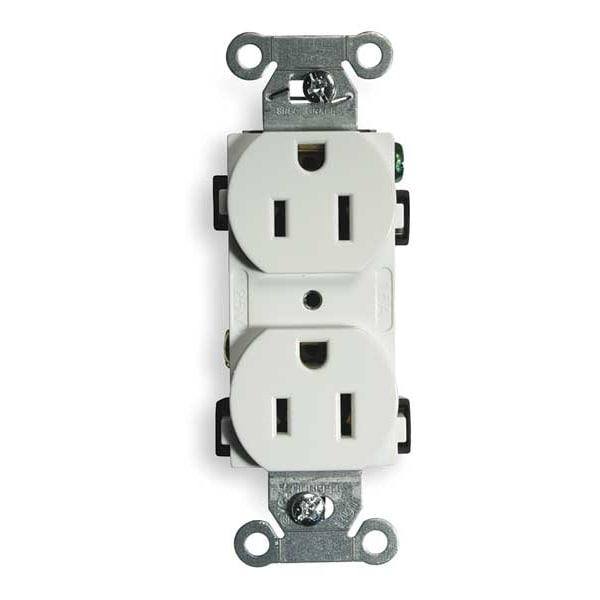

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR15WHI - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR15WHI

  • Zoro # G3488387

product price:  $4.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BR15WHI
Zoro #
G3488387
UPC #
783585127972
Country of Origin
China

Dimensions

Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.3 in x 1.34 in x 1.1 in
Minimum Wire Size
14 AWG
Overall Depth
1.1 in
Face Plate Width
1.3 in
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Application Environment
Commercial
Weather Resistant
No
Mounting Type
Flush
Outlet Type
Duplex
Weather Resistant - Plugs and Receptacles
No
Mounting Type - Plugs and Receptacles
Flush
Tamper Resistant
No
Power Indicator
No
Wiring Method - Plugs and Receptacles
Back and Side
HP
1/2 hp
Voltage
125VAC
Sub-Category
Duplex Receptacles
Corrosion Resistant
No
Surge Suppression
No
Color
White
Material
Nylon
NEMA Configuration
5-15
Outlet Type - Plugs and Receptacles
Standard Duplex
Number of Gangs
1
Series
Commercial Specification Grade
Nema Rating
5-15R
Type
Standard Duplex
Carton Quantity
10
Dielectric Strength
Withstands 2,000V minimum
Connectivity
Back and Side Wired
Wattage
1875 W
Brand
Hubbell Wiring Device-Kellems
Mounting Hardware Material
Screw Mounting
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Amperage
15 A
Maximum Horsepower
0.5
Number Of Wires
3-Wire
Application
Commercial Specification Grade
Style
Smooth Face
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
UL 94 Flammability Rating
V-2
Grade
Federal Specification
Connection Orientation
Straight
Horsepower Rating
1/2 hp
GFCI
No
For Location
Indoor
NEMA Enclosure Rating
1
Surge Protection
No
AFCI
No
Polarized
Yes
Includes Mounting Hardware
Yes
Housing Material
Nylon
Cover Type
No Cover
Contact Material
Brass
Shrouded
No
Minimum Operating Temperature
-40 Degrees F
Market
Commercial, Industrial
Maximum Operating Temperature
167 Degrees F
Mounting Strap Material
.040" (1) Steel (Galvanized)
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Receptacle Style
Duplex
Flammability
UL 94 V-2
Horsepower
0.5
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Poles and Wires
2 Pole, 3-Wire Grounding
Mounting Screw Material
Steel-Zinc Plated
Standard
NEMA
Current Interrupting
Certified for current interrupting at full rated current
Auto Ground Clip Material
Stainless Steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Power Contacts Material
.030" (.8) Brass
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Device Color
White
Rating
15A, 125V
Receptacle Grade
Specification Grade Commercial Series
Face Shape
Traditional
Top Material
Nylon
Dielectric Voltage
Withstands 2,000V minimum
Base Material
Nylon

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42, Federal Specification W-C-59, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
