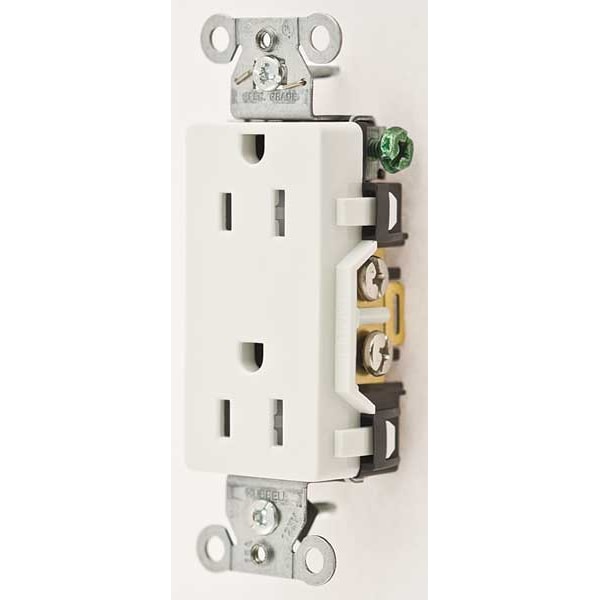

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR15WHITR

  • Zoro # G3069692


product price:  $10.95
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DR15WHITR
Zoro #
G3069692
UPC #
783585144375
Country of Origin
China

Dimensions

Overall Depth
3.3 in
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Mount Hole Center-to-Center Width
1.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
2.7 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
C22.2, Certified to CSA, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, No. 42, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Wiring Method
Back, Side
Mounting Type
Flush
Number of Gangs
1
Surge Suppression
No
Weather Resistant
No
Weather Resistant - Plugs and Receptacles
No
HP
1/2 hp
Mounting Type - Plugs and Receptacles
Flush
Tamper Resistant
Yes
Outlet Type
Decorator
Sub-Category
Duplex Receptacles
Application Environment
Commercial
Voltage
125VAC
Outlet Type - Plugs and Receptacles
Decorator Duplex
Power Indicator
No
Wiring Method - Plugs and Receptacles
Back and Side
Material
Nylon
Corrosion Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
NEMA Configuration
5-15
Type
Duplex
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
NEMA Enclosure Rating
1
Market
Commercial, Industrial
Horsepower Rating
1/2 hp
AFCI
No
For Location
Indoor
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Grade
Federal Specification
Connection Orientation
Straight
Shrouded
No
UL 94 Flammability Rating
V-2
Housing Material
Nylon
Polarized
Yes
Includes Mounting Hardware
Yes
Surge Protection
No
Cover Type
No Cover
Top Material
Nylon
Ground Screw Material
#8-32 Brass, Multiple Drive
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Face Shape
Decorator
Receptacle Grade
StyleLine Decorator Series, Specification Grade, Tamper Resistant
Mounting Strap Material
.040" (1) Steel (Galvanized)
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Device Color
White
Standard
NEMA
Dielectric Voltage
Withstands 2,000V minimum
Base Material
Nylon
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Screw Material
#8-32 Brass, Multiple Drive
Horsepower
0.5
Poles and Wires
2 Pole, 3-Wire Grounding
Current Interrupting
Certified for current interrupting at full rated current
Power Contacts Material
.030" (.8) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Auto Ground Clip Material
Stainless Steel
Face Style
Smooth Face
Flammability
UL 94 V2.
Rating
15A, 125V
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Mounting Screw Material
Steel-Zinc Plated
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only

Description

The HUBBELL 15A Duplex Decorator Receptacle 125VAC 5-15R WH is a tamper-resistant electrical outlet intended for commercial and industrial indoor applications. It features a decorator-style smooth face and accepts standard NEMA 5-15R plugs, supporting up to 15 amps at 125 volts AC. The receptacle is constructed with nylon housing and includes triple wipe brass contacts for reliable connectivity.


Key Features of the HUBBELL 15A Duplex Decorator Receptacle:

  • Tamper Resistant: Built-in shutters are intended to reduce the risk of foreign object insertion.

  • Electrical Rating: Rated for 15A, 125V AC; suitable for single-phase applications.

  • NEMA Configuration: Accepts standard NEMA 5-15R plugs (2-pole, 3-wire grounding).

  • Material Construction: Nylon base and housing with brass power contacts; stainless steel auto ground clip.

  • Mounting Type: Flush mount design; includes mounting hardware and grounding staple.

  • Wiring Method: Supports both back and side wiring with #14–#10 AWG copper conductors only.

  • Certification & Standards: UL Listed, CSA Certified, meets NEMA WD-6 requirements, listed to UL Standard 498.

  • Operating Temperature Range: -40°F to +167°F (-40°C to +75°C continuous operation).
