  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

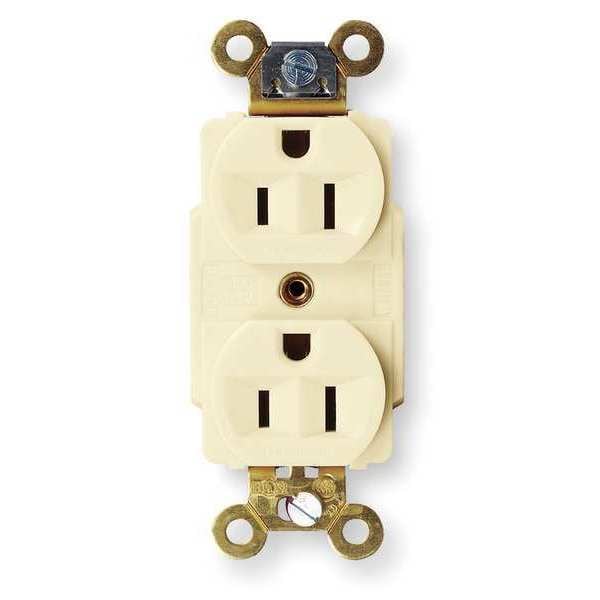

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5262I - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5262I

  • Zoro # G1868422

product price:  $26.80
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL5262I
Zoro #
G1868422
UPC #
783585435169
Country of Origin
United States

Dimensions

Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.65 in x 1.19 in
Display Size
Standard Sized Product
Length
3.28 in
Width
1.65 in
Height
1.19 in
Face Plate Height
2.7 in
Overall Depth
1.2 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.7 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, Fed. Spec. W-C-596, NEMA WD-1, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
HP
1/2 hp
Voltage
125VAC
Outlet Type - Plugs and Receptacles
Standard Duplex
Color
Ivoire
Power Indicator
No
Application Environment
Harsh and Heavy Use Industrial
Weather Resistant
No
Weather Resistant - Plugs and Receptacles
No
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type
Duplex
Corrosion Resistant
No
NEMA Configuration
5-15
Number of Gangs
1
Mounting Type - Plugs and Receptacles
Flush
Material
Nylon
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Surge Suppression
No
Sub-Category
Duplex Receptacles
Tamper Resistant
No
Weight
0.25 lb
Brand
Hubbell Wiring Device-Kellems
Carton Quantity
10
Number Of Wires
3-Wire
Type
Standard Duplex
Connectivity
Back and Side Wired
Application
Extra Heavy Duty Specification Grade
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Style
Finder Groove Face
Dielectric Strength
Withstands 2,000V minimum
Mounting Hardware Material
Screw Mounting
Maximum Horsepower
0.5
Nema Rating
5-15R
UPC
783585000000
Amperage
15 A
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Wattage
1875 W
Series
Extra Heavy Duty
GFCI
No
Contact Material
Nickel-Plated Brass
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon (Face)
Connection Orientation
Straight
Cover Type
No Cover
Shrouded
No
UL 94 Flammability Rating
V-0, V-2
Market
Industrial
Horsepower Rating
1/2 hp
NEMA Enclosure Rating
1
Maximum Operating Temperature
167 Degrees F
AFCI
No
Surge Protection
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Includes Mounting Hardware
Yes
Grade
Federal Specification
Polarized
Yes
Face Style
Finder Groove
Device Color
Ivory
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Receptacle Style
Duplex
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Base Material
Reinforced PET
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Poles and Wires
2 Pole, 3-Wire Grounding
Top Material
Nylon
Horsepower
0.5
Other Available Colors
Brown, Black, Gray, Ivory, Red, White
Flammability
Top: UL 94V-2, Base: UL 94V-0, UL 94 V2 or better
Face Shape
Traditional
Dielectric Voltage
Withstands 2,000V minimum
Ground Screw Material
#10-32 Silicon Bronze (Green)
Standard
NEMA
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Mounting Screw Material
Steel-Zinc Plated
Receptacle Grade
Extra Heavy Duty Spec Grade
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Current Interrupting
Certified for current interrupting at full rated current
Rating
15A, 125V
Power Contacts Material
.037" (.9) Brass
Mounting Strap Material
.050" (1.3) Brass
Auto Ground Clip Material
Stainless Steel
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
0.5
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

HBL® Extra Heavy Duty Max Industrial Series - Hubbell’s commitment to quality continually reinforces a philosophy of unrivaled performance. No Hubbell device exemplifies this philosophy more than the HBL5262. While all Hubbell receptacles are designed and manufactured to withstand even the harshest environments, none match the total performance of the HBL5262. Whether in a factory, office building or school, the Hubbell HBL5262 is the receptacle of choice when people are depending on the safety and reliability of a receptacle. The safest, most reliable design for a low resistance flow of fault currents. Oversized “bell" shaped ground contacts, along with nickel plated steel retaining shields, help minimize damage to the grounding system during abrupt pullout.
•
