  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

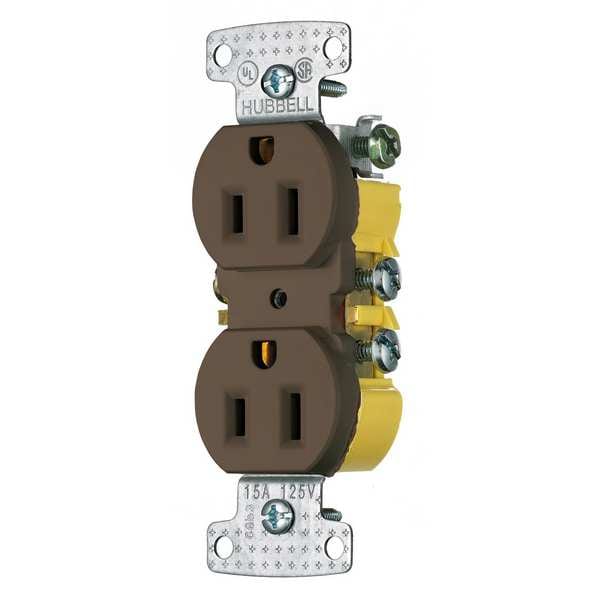

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded RR15 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # RR15

  • Zoro # G3398717

product price: $1.62
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RR15
Zoro #
G3398717
UPC #
883778100017
Country of Origin
China

Dimensions

Overall Depth
4.2 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.6 in
Maximum Wire Size
12 AWG
Minimum Wire Size
14 AWG
Face Plate Width
1.5 in
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Corrosion Resistant
No
Outlet Type
Duplex
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
Power Indicator
No
Surge Suppression
No
Mounting Type
Flush
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Push and Side
NEMA Configuration
5-15
Tamper Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Sub-Category
Duplex Receptacles
HP
1/2 hp
Outlet Type - Plugs and Receptacles
Standard Duplex
Application Environment
General Purpose
Weather Resistant
No
Type
Duplex
Grade
General Use
Surge Protection
No
AFCI
No
Minimum Operating Temperature
-20 Degrees C
Polarized
Yes
Connection Orientation
Straight
Contact Material
Brass
NEMA Enclosure Rating
1
GFCI
No
Market
Residential
Housing Material
Thermoplastic
Shrouded
No
For Location
Indoor
Horsepower Rating
1/2 hp
Maximum Operating Temperature
140 Degrees F
Includes Mounting Hardware
Yes
Cover Type
No Cover
Includes
Mounting Hardware
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material
Thermoplastic
Application
Residential Receptacles
Wattage
1875
Material - Mounting Hardware
Screw Mounting
Nema Rating
5-15R
Performance
Environmental - Operating temperature - -20°C to 60°C Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, AFCI No
