  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

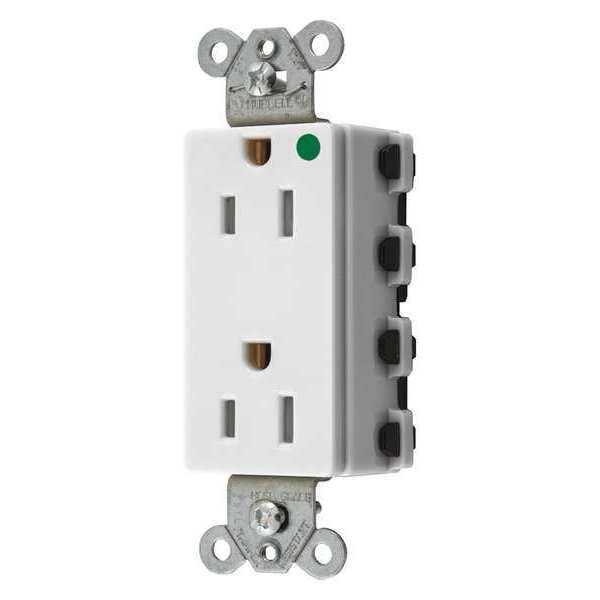

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP2172WTRA - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP2172WTRA

  • Zoro # G4440375

product price:  $27.45
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2172WTRA
Zoro #
G4440375
UPC #
783585552255
Country of Origin
Mexico

Dimensions

Height
1.1 in
Width
1.64 in
Maximum Wire Size
12 AWG
Overall Depth
1.1 in
Face Plate Width
1.6 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.6 in
Length
3.28 in
Dimensions
3.28 in x 1.64 in x 1.1 in
Wire Size
#12 AWG
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Wiring Method
Back
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
IP20
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Application Environment
Commercial
NEMA Configuration
5-15
Sub-Category
Duplex Receptacles
Power Indicator
No
Surge Suppression
No
Weather Resistant
No
Outlet Type
Duplex
Tamper Resistant
Yes
Voltage
125VAC
Corrosion Resistant
No
NEMA Rating
1
Mounting Type - Plugs and Receptacles
Flush
Mounting Type
Flush
Material
Nylon
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Weather Resistant - Plugs and Receptacles
No
Wiring Method - Plugs and Receptacles
Modular
HP
1/2 hp
Market
Commercial
Wire Connection Types
Snap-In Module
Shrouded
No
Horsepower Rating
1/2 hp
Cover Type
No Cover
Key Resistance Properties
Tamper Resistant
AFCI
No
Grade
Hospital Grade Fed. Spec.
UL 94 Flammability Rating
V-2
Surge Protection
No
GFCI
No
Housing Material
Nylon
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Additional Electrical Protection
Standard Protection
For Location
Indoor
Contact Material
Brass
Number of Poles & Wires
2 Pole / 3 Wire
NEMA Enclosure Rating
1
Polarized
Yes
Includes
Wall Plate or Weatherproof Cover
Application
Hospital Grade
Style
Style Line Decorator
Series
Hospital Grade
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Wattage
1875 W
Dielectric Strength
Withstands 2,000V minimum
Horsepower - Maximum
0.5
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
OEM Brand Name
Hubbell Wiring Device-Kellems
Number Of Conductors
3-Wire Grounding
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

The HUBBELL SNAPConnect® Receptacle is a 15 amp, 125V AC flush mount duplex outlet suitable for use in commercial and hospital-grade settings. It features a modular wiring system that allows the connector to be installed during rough-in, with final device installation completed by snapping the terminal into place after wall finishing. This receptacle is tamper-resistant and grounded, intended for use in indoor dry locations.


Key Features of the HUBBELL SNAPConnect® Receptacle:

  • Amperage/Voltage: Rated for 15 A at 125V AC

  • NEMA Configuration: 5-15R standard duplex outlet

  • Mounting Type: Flush mount design for single-gang installations

  • Wiring Method: Modular snap-in connection allows for installation and replacement

  • Tamper Resistant: Built-in tamper resistance feature

  • Grade & Standards: Hospital Grade; certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186

  • Operating Temperature Range: -40°C to 75°C (without impact)

  • Material & Construction: Nylon housing with brass contacts; back-wired configuration supports up to #12 AWG wire size
