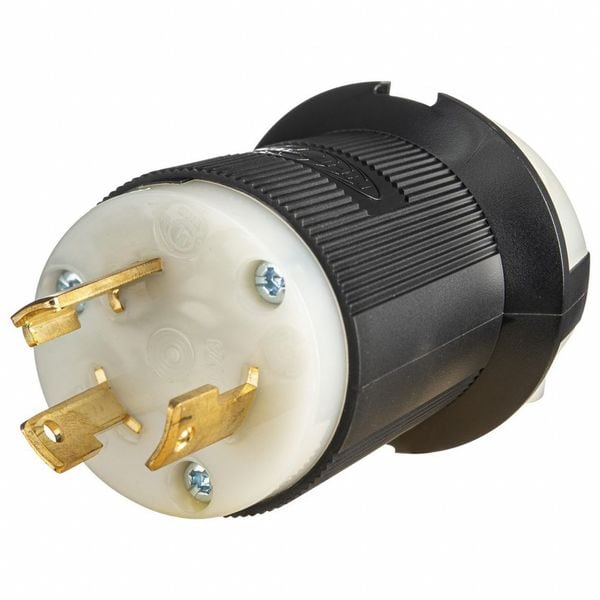

Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Spring Clamp Terminals, Black, White

The HUBBELL Locking Plug is a heavy-duty electrical connector intended for industrial applications and features a locking mechanism. It features spring clamp terminals to facilitate wire termination and can be installed without the use of a torque wrench. The plug includes a funnel-shaped wire entry to facilitate wiring and incorporates a steel spring intended to help maintain strand tension, reducing the risk of loose connections.

Key Features of the HUBBELL Locking Plug:

• Blade Material: Copper alloy blades provide electrical contact.


• Housing Material: Nylon housing provides specified material properties as per manufacturer information.


• NEMA Configuration: L5-30P; 2-pole, 3-wire grounded design.


• Current/Voltage Rating: Rated for 30 A at 125V AC single phase operation.


• Wire Size Compatibility: Accepts wire sizes from 14 AWG to 8 AWG.


• Cable Diameter Range: Suitable for cables between 0.36 in and 0.93 in diameter.


• Operating Temperature Range: Rated for operation within -40°C to +75°C temperature range.


• Connection Orientation & Style: Straight connection with standard wiring style using spring clamp terminals.


• Polarized & Grounded: Yes, supports installation alignment and grounding capability.


• Flammability & IP Rating: UL94 HB flammability rating; IP20 ingress protection against solid objects larger than 12 mm.


• Standards Compliance: Certified to CSA C22.2 No.42, Federal Specifications W-C-596, Listed to UL498 standards
